Frame with soft-close slides for cabinet accessories Hack, 560 - 594, Textured black painted

7113054 / 8432393306834
Essential products
ABPackagingFinishingSKU
560 - 594483 (M60)2 Unit
Textured black painted
7113054
623 - 6575462 Unit
Textured black painted
7113154
682 - 7166052 Unit
Textured black painted
7113254
741 - 7756642 Unit
Textured black painted
7113354
760 - 794683 (M80)2 Unit
Textured black painted
7113454
798 - 8327212 Unit
Textured black painted
7113554
832 - 8667552 Unit
Textured black painted
7113654
860 - 894783 (M90)2 Unit
Textured black painted
7113754
891 - 9258142 Unit
Textured black painted
7114154
923 - 9578462 Unit
Textured black painted
7113854
982 - 1.0169052 Unit
Textured black painted
7113954
1.041 - 1.0759642 Unit
Textured black painted
7114054
560 - 594483 (M60)2 Unit
Painted stone grey
7113049
623 - 6575462 Unit
Painted stone grey
7113149
682 - 7166052 Unit
Painted stone grey
7113249
741 - 7756642 Unit
Painted stone grey
7113349
760 - 794683 (M80)2 Unit
Painted stone grey
7113449
798 - 8327212 Unit
Painted stone grey
7113549
832 - 8667552 Unit
Painted stone grey
7113649
860 - 894783 (M90)2 Unit
Painted stone grey
7113749
891 - 9258142 Unit
Painted stone grey
7114149
923 - 9578462 Unit
Painted stone grey
7113849
982 - 1.0169052 Unit
Painted stone grey
7113949
1.041 - 1.0759642 Unit
Painted stone grey
7114049

Product features

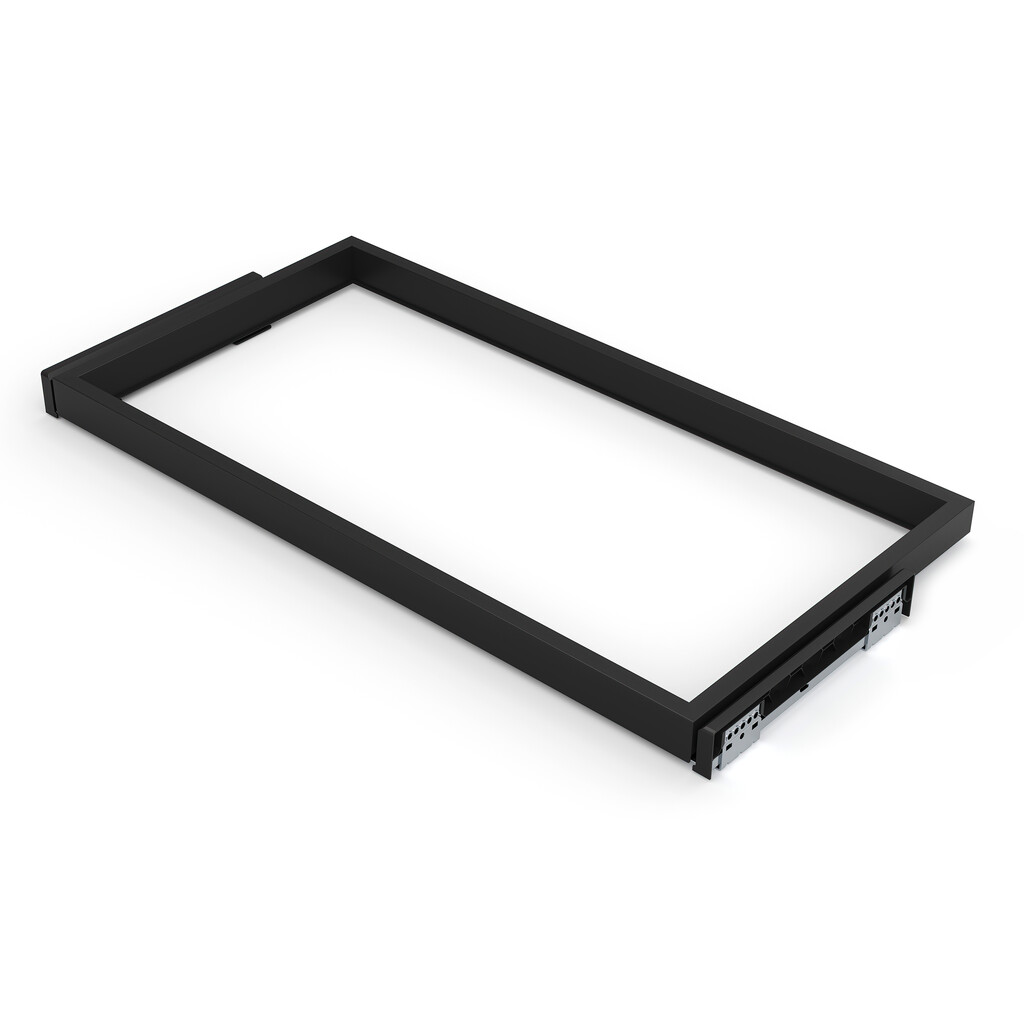

  • Aluminum pull-out frame with soft-close guides and partial extraction, designed to be assembled together with Hack cabinet accessories.

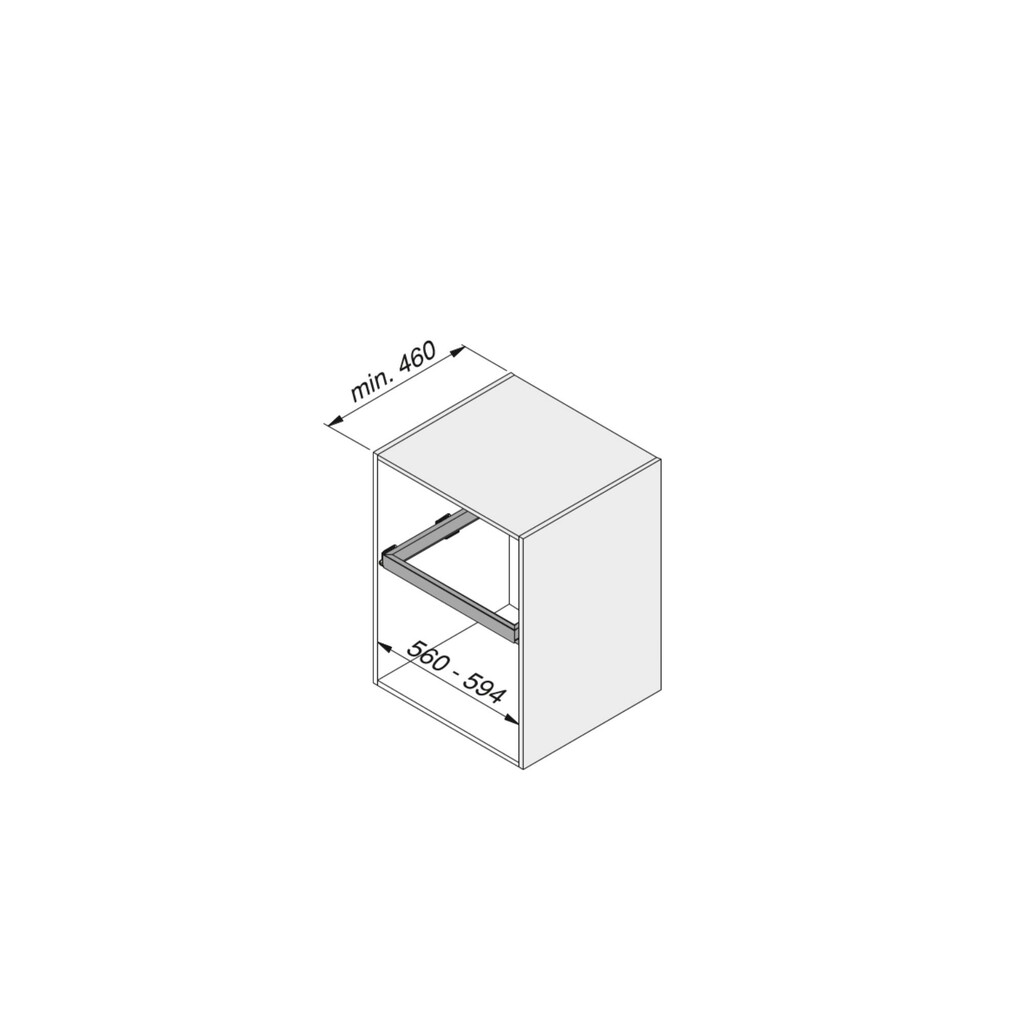

  • Valid for an inner wardrobe space of 560 - 594 mm (M60). Minimum furniture depth 450 mm. It stands out the regulation of up to 17 mm that has each of its guides.
  • It is characterized by its easy and quick assembly, because the frame is assembled and the frame-guides union is very simple thanks to its clipping system, without the need for tools, just screw on the side of the cabinet.
  • It includes 1 frame, 1 set of guides, 1 set of cover caps and 8 screws Ø4x16 mm.
  • It is made of aluminum and plastic with textured painted finish in black color.

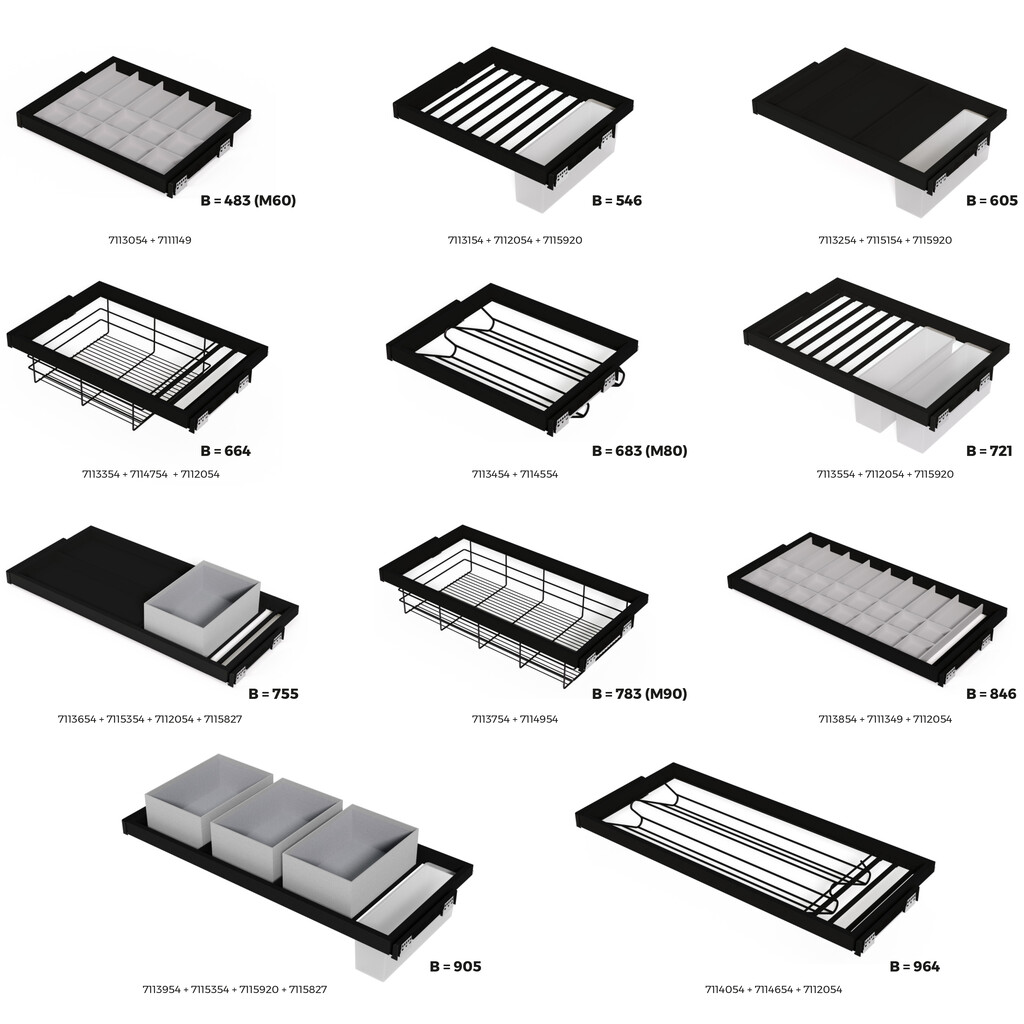

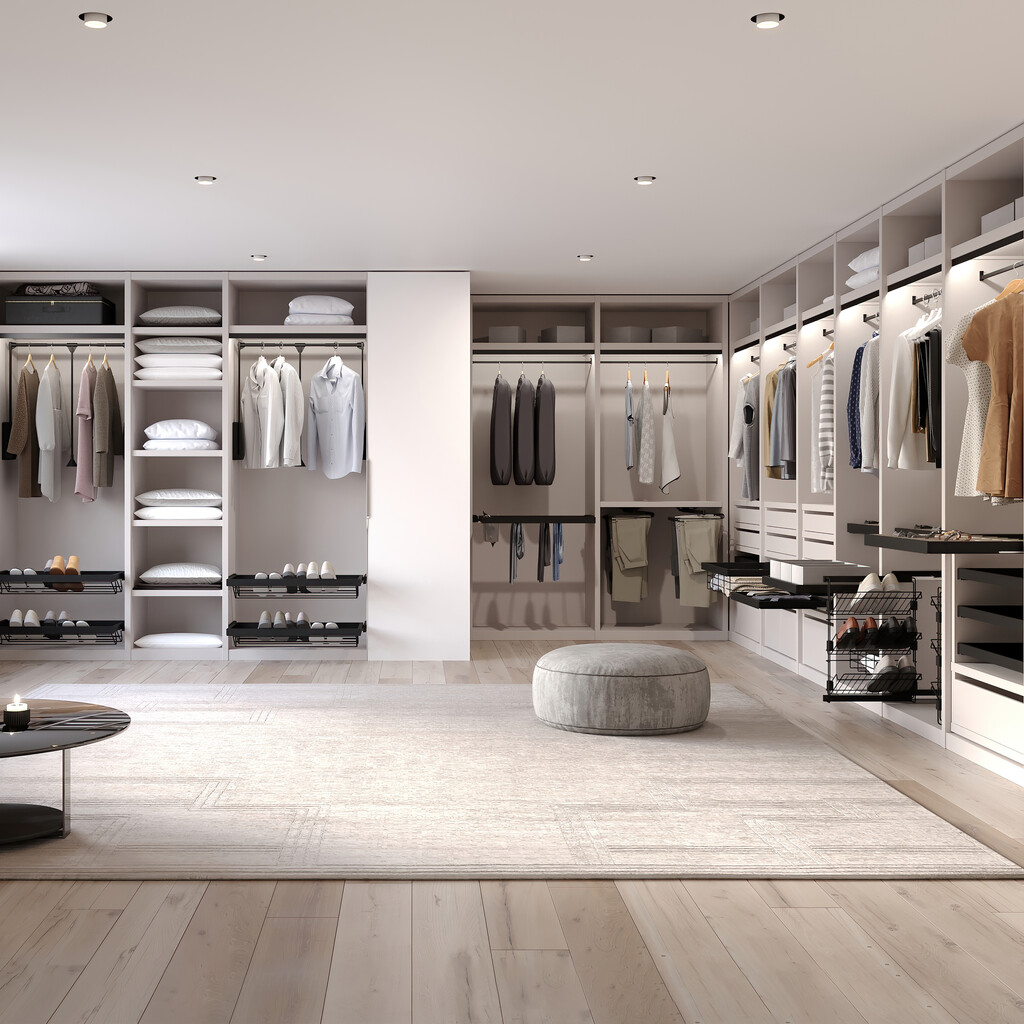

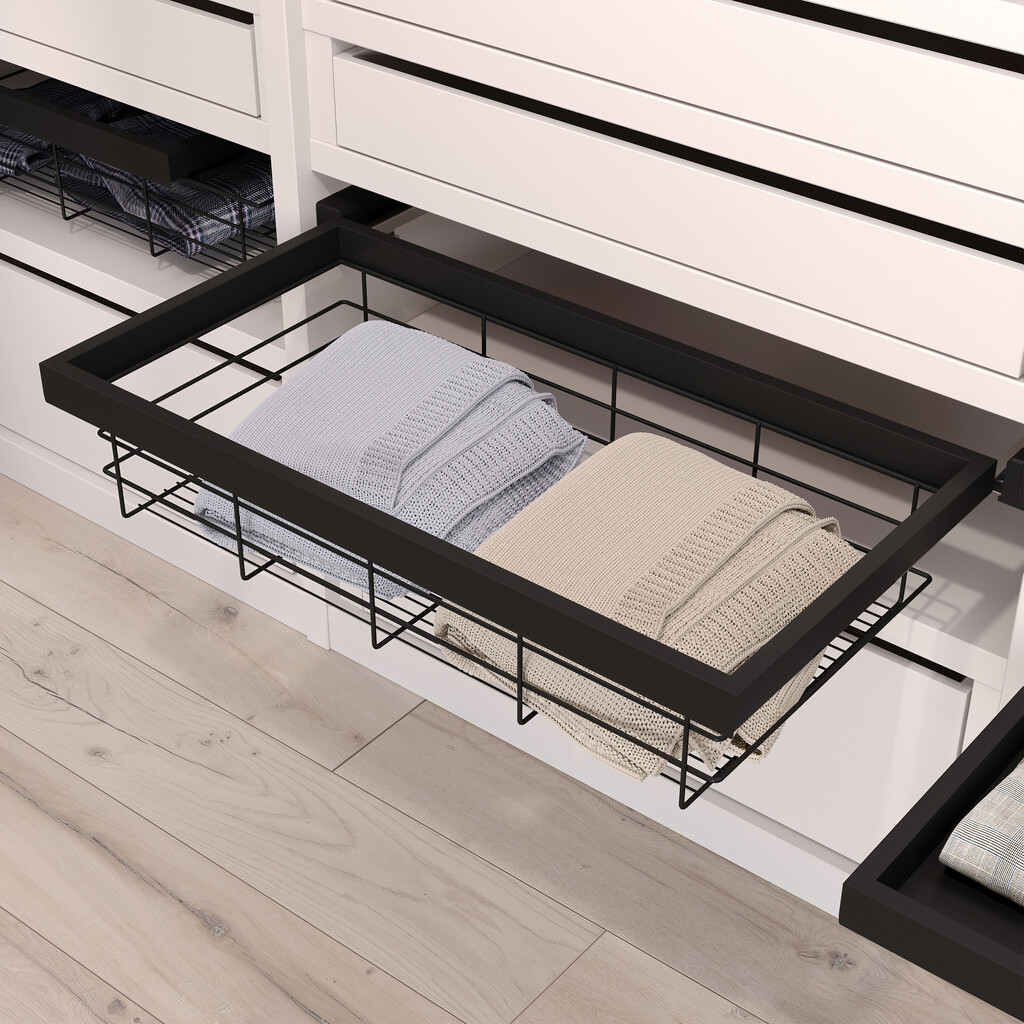

The Hack frame for closet accessories is made with a minimalist style design, which stands out for its textured finish in stone gray or black, which is the latest trend in the design of closets in bedrooms and dressing rooms. It achieves a more comfortable clothes storage thanks to its soft closing and partial extraction guides, which allow to open and close the frame slowly and silently to avoid bumps, with embellishing pieces to hide the guides.

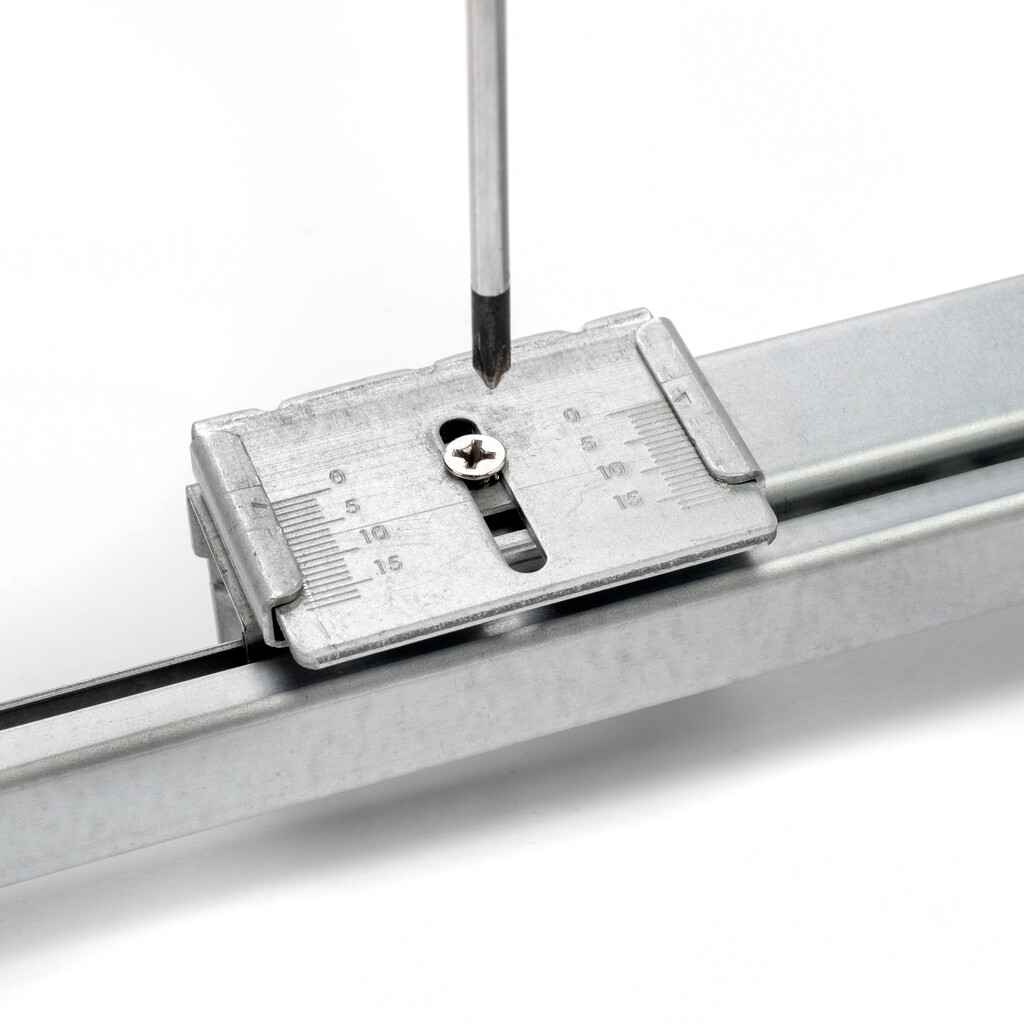

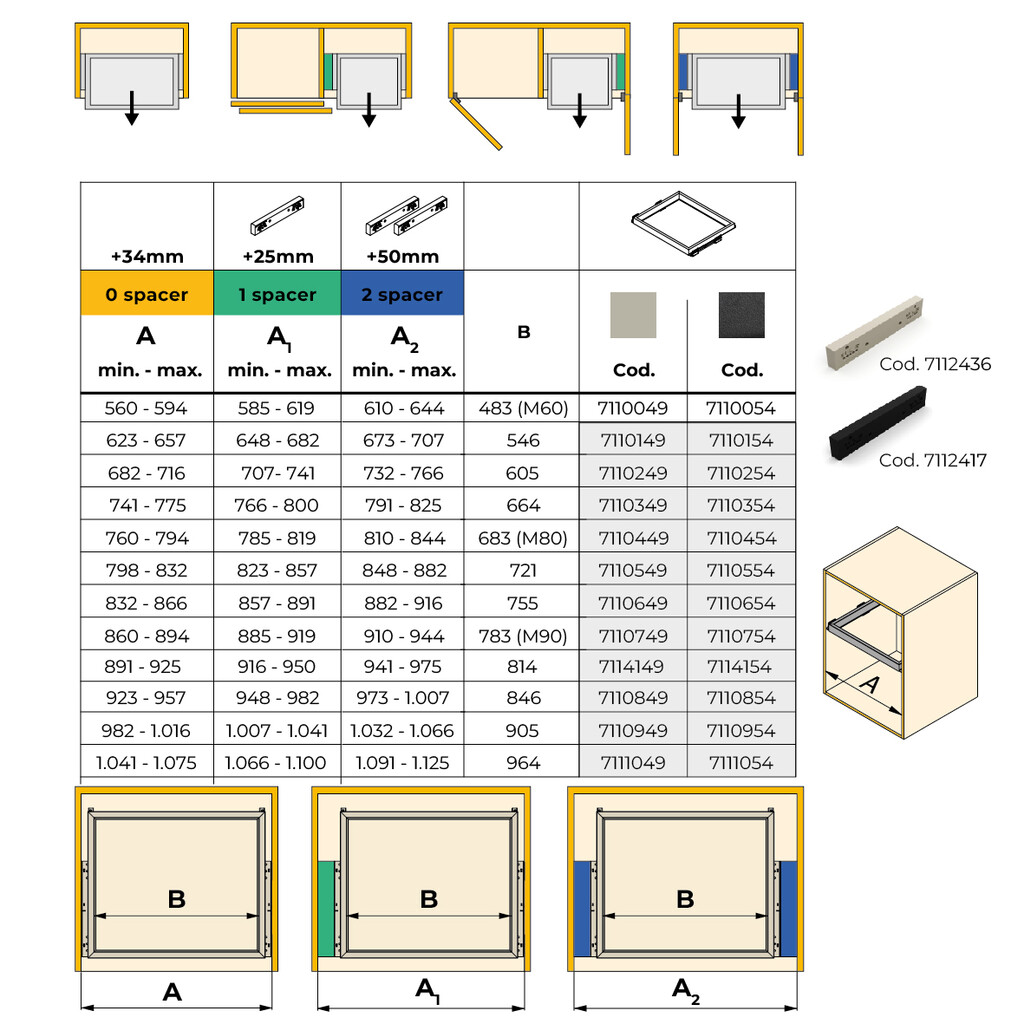

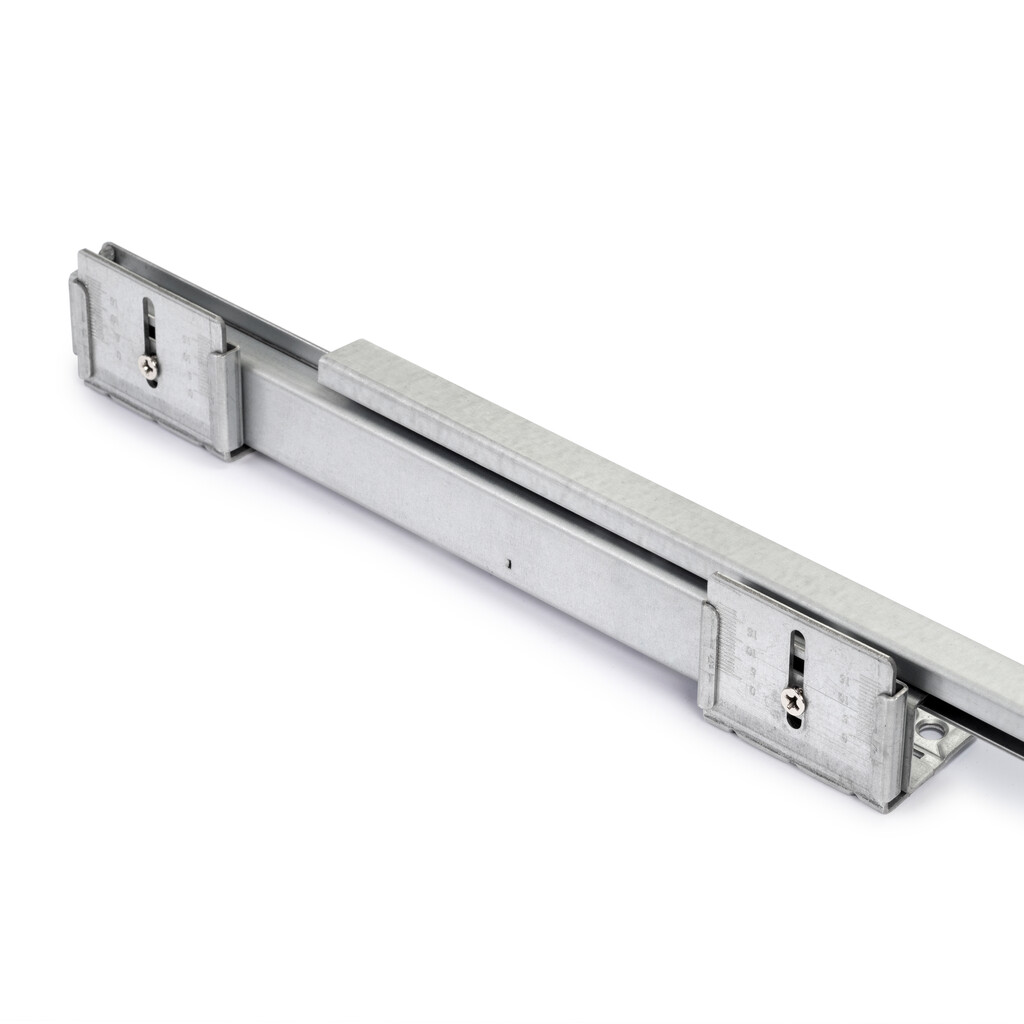

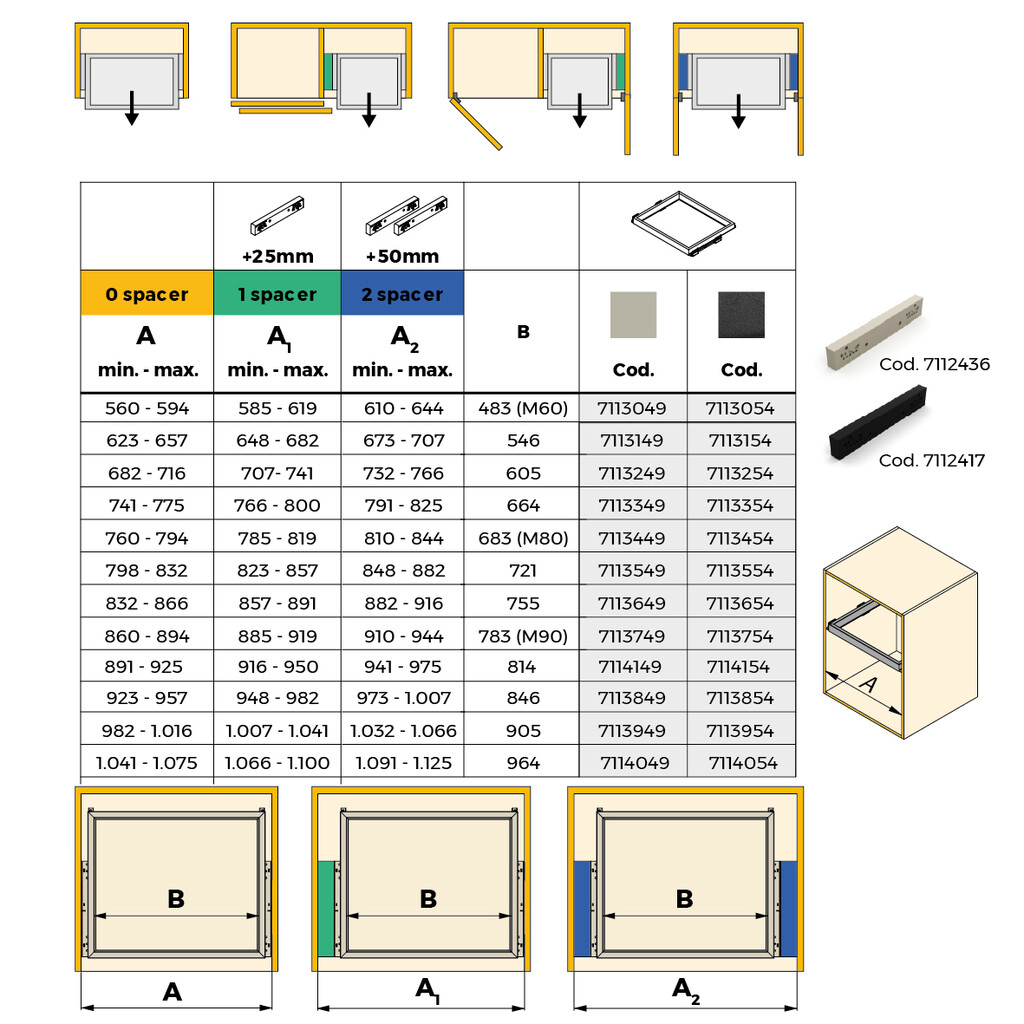

It stands out the adjustment of up to 17mm that has each of its guides, which together with the spacers, we obtain a range of cabinet openings from 560 to 1,112 mm wide and a maximum depth of 450mm to be able to install the frames. It is characterized by its easy and quick assembly, because the frame is assembled and the frame-guides union is very simple thanks to its clipping system, without the need for tools, you just have to screw on the side of the cabinet.

Everything needed to assemble 1 frame is supplied, i.e. 1 aluminium frame, 1 set of guides, 1 set of plastic cover caps and 8 screws Ø4x16mm. It is made of aluminium and plastic with a textured painted finish in stone grey or black, depending on the model selected.

Components

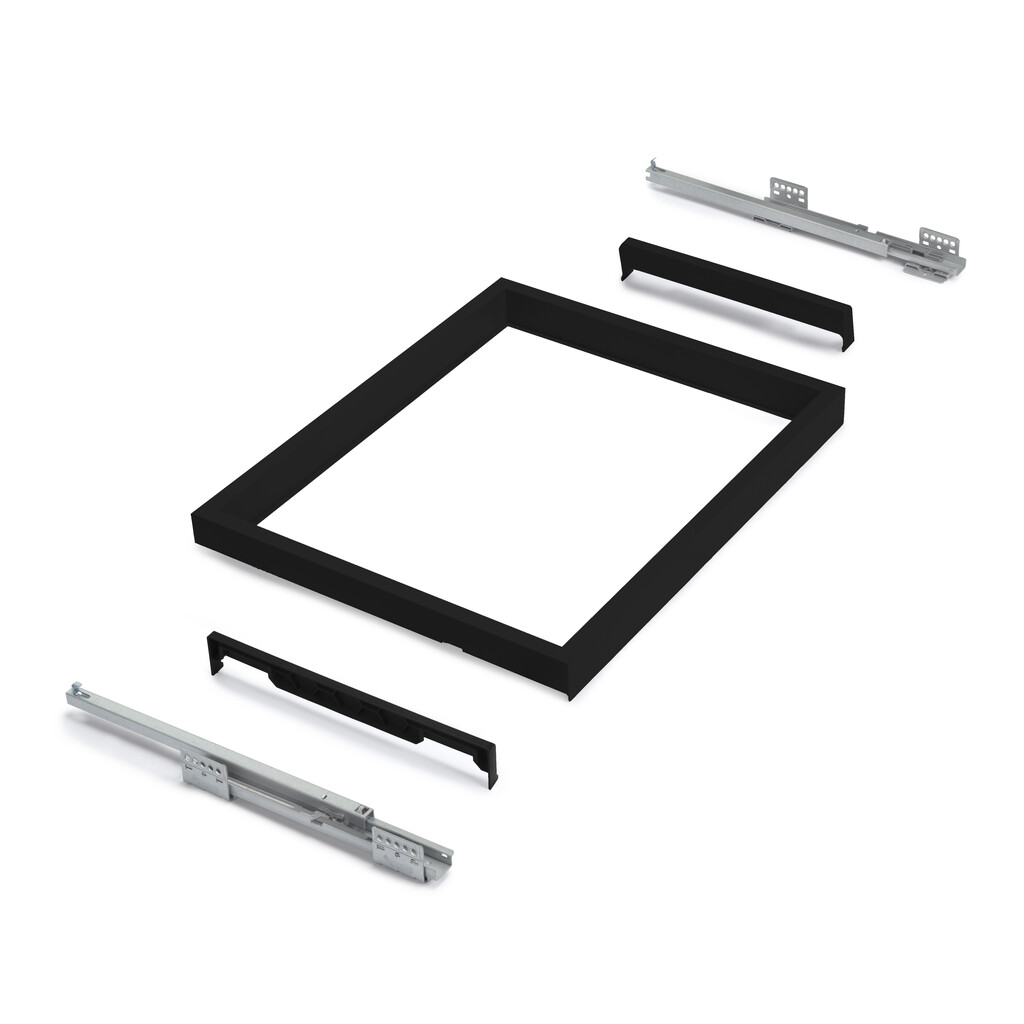

1 aluminium frame, 1 pair of runners, 1 pair of cover plates, 8 screws Ø4x16mm, 1 set of runners, 1 set of cover plates, 8 screws Ø4x16mm

Documentation

BPackagingFinishingSKU
483 (M60)1 UnitPainted stone grey7111149
683 (M80)1 UnitPainted stone grey7111249
783 (M90)1 UnitPainted stone grey7111349
BPackagingFinishingSKU
482 (M60)2 UnitTextured black painted7114454
682 (M80)2 UnitTextured black painted7114554
782 (M90)2 UnitTextured black painted7114654
482 (M60)2 UnitPainted stone grey7114449
682 (M80)2 UnitPainted stone grey7114549
782 (M90)2 UnitPainted stone grey7114649
BPackagingFinishingSKU
482 (M60)2 UnitTextured black painted7114754
682 (M80)2 UnitTextured black painted7114854
782 (M90)2 UnitTextured black painted7114954
482 (M60)2 UnitPainted stone grey7114749
682 (M80)2 UnitPainted stone grey7114849
782 (M90)2 UnitPainted stone grey7114949
PackagingFinishingSKU
1 LOTTextured black painted7112054
1 LOTPainted stone grey7112049
BPackagingFinishingSKU
483 (M60)2 UnitTextured black painted7115154
683 (M80)2 UnitTextured black painted7115254
783 (M90)2 UnitTextured black painted7115354
483 (M60)2 UnitPainted stone grey7115149
683 (M80)2 UnitPainted stone grey7115249
783 (M90)2 UnitPainted stone grey7115349
PackagingFinishingSKU
4 UnitBlack7115417
4 UnitStone grey7115436
PackagingFinishingSKU
6 UnitGrey textil effect7115827
PackagingFinishingSKU
2 UnitNot defined7115920

FAQ


The gap between the side of the module and the frame / rails of the Hack interior cabinet or walk-in closet accessories is a minimum of 20mm.
