Housing with ring for fitting System 14, 20, Zamak, Zinc plated

Housing with ring for fitting System 14, 20, Zamak, Zinc plated-Primary

Housing with ring for fitting System 14, 20, Zamak, Zinc plated-1

Housing with ring for fitting System 14, 20, Zamak, Zinc plated-2

Housing with ring for fitting System 14, 20, Zamak, Zinc plated-

New

F	Board thickness	X	Y	Packaging	Finishing	SKU
EU M8x1	18	9	14,5	1000 Unit	Zinc plated	4434905
EU M8	18	9	14,5	1000 Unit	Zinc plated	4417005
EU M8	20	10	15	1000 -	Zinc plated	3435205

Product features

The System 14 hitch housing forms part of a furniture joining system, designed to create secure and discreet joints between 20 mm-thick panels.
To install it, a hole with a diameter of 14 mm and a depth of 15 mm must be machined into the furniture, ensuring the housing fits precisely. The housing also incorporates a ring with a diameter of 16 mm and a thickness of 1 mm.
Assembly is completed by purchasing the piston separately, along with an EU M8 screw to secure the piston to the housing and, if desired, a cover plate.
Once installed, the system allows for a concealed assembly, keeping the joint integrated within the furniture to achieve a clean finish.
Made from Zamak with a zinc-plated finish.

SKU	3435205
EAN	8432393350141
Diametre	Ø14 mm
Board thickness	20
Model	System Ø14
Finishing	Zinc plated
Material	Zamak

The System 14 housing forms part of a furniture joining system designed to achieve strong, precise and concealed joints, whilst maintaining a clean aesthetic in the furniture. The range offers different variants to suit board thicknesses of 18, 20 and 25 mm. All models require a 14 mm diameter hole to be drilled, whilst the depth varies between 14.5 and 17.5 mm depending on the version. The housing also incorporates a 16 mm diameter ring, 1 mm thick. To complete the system, the corresponding piston and screw must be purchased separately; these are available with either EU M8x1 or EU M8 threads, depending on the variant. An optional cover plate can also be fitted to enhance the overall finish. Once assembled, System 14 allows the joint to be concealed inside the cabinet, offering a practical and discreet solution for assembling panels. Manufactured from Zamak with a zinc plated finish, it provides a durable and functional solution for the manufacture and assembly of furniture.

Product benefits

Fastening component designed for fastening pins into boards, ensuring a secure and aesthetically pleasing joint.

Manufacturers: Manufactured in zamak with a zinc-plated finish, its structure allows the locking of the hitch bolt in jointing systems.

Distributors/Wholesalers: Available in packs of 1000 units, optimising its commercialisation in the furniture assembly sector.

Carpenters: Installation in pre-machined holes, with diameter of 16 mm, total height of 15.6 mm and a distance of 9 mm from its top to the centre of the fixing hole.

E-commerce & Retail: Product in high demand in online shops specialising in furniture assembly and modular structures.

Documentation

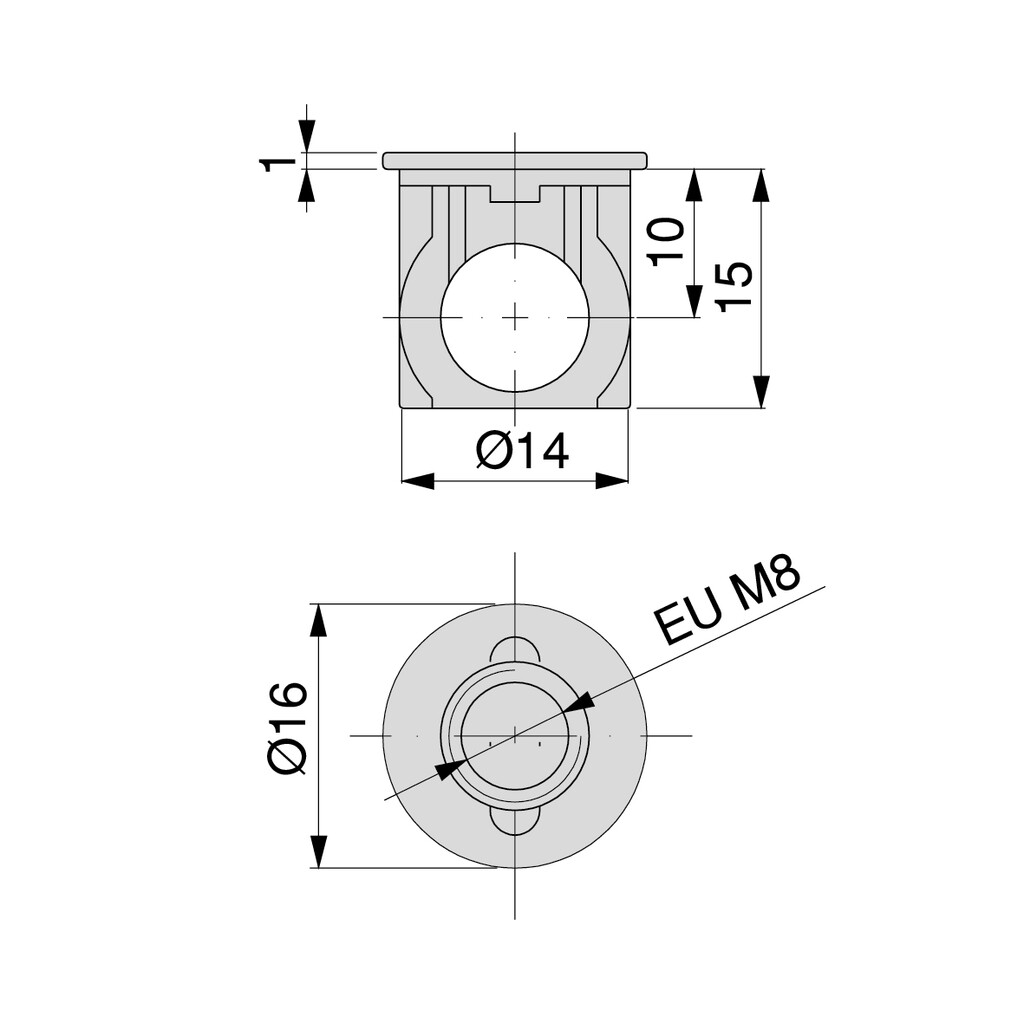

Sketch

Essential

Conical screws for System coupling Ø14

Board thickness	F	X	Packaging	Finishing	SKU
14 - 16 - 18	EU M8x1	8,5	1000 Unit	Zinc plated	8146105
18	EU M8	8,5	1000 Unit	Zinc plated	8146205
20	EU M8x1	10	1000 Unit	Zinc plated	8111805
22	EU M8	10	1000 Unit	Zinc plated	8111905
