Housing for fitting System 14, 18, Zamak, Zinc plated

SKU 4417205 / EAN 8432393129839
Essential products
Board thicknessFXYPackagingFinishingSKU
16EU M8x18141000 Unit
Zinc plated
8010605
18EU M8x1914,51000 Unit
Zinc plated
4435105
18EU M8914,51000 Unit
Zinc plated
4417205
20EU M8x11015,51000 Unit
Zinc plated
8035005
20EU M810151000 Unit
Zinc plated
8017105
25EU M812,517,51000 Unit
Zinc plated
8037005

Product features

  • The System 14 hitch housing forms part of a furniture joining system, designed to create secure and discreet joints between 18 mm-thick panels.

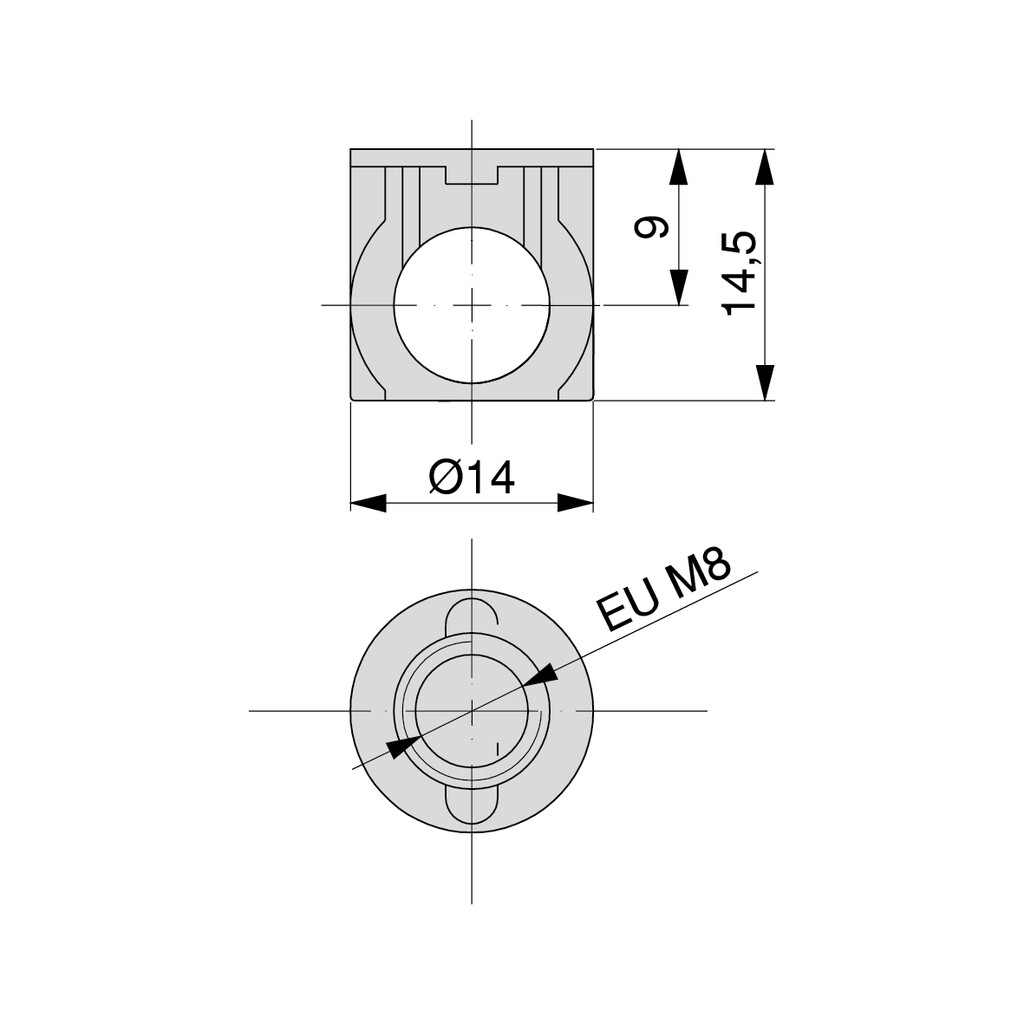

  • To install it, a hole with a diameter of 14 mm and a depth of 14,5 mm must be machined into the furniture, ensuring the housing fits precisely.
  • Assembly is completed by purchasing the piston separately, along with an EU M8 screw to secure the piston to the housing and, if desired, a cover plate.
  • Once installed, the system allows for a concealed assembly, keeping the joint integrated within the furniture to achieve a clean finish.
  • Made from Zamak with a zinc-plated finish.
SKU 4417205
EAN 8432393129839
Diametre 14
Board thickness 18
Model System Ø14
Finishing Zinc plated
Material Zamak
Dimensions 1,45 x 1,4 x 1,4 cm

Components

1 Housing fitting

The System 14 housing forms part of a furniture joining system designed to achieve strong, precise and concealed joints, whilst maintaining a clean aesthetic in the furniture. The range offers different variants to suit boards with thicknesses of 16, 18, 20 and 25 mm. All models require a 14 mm diameter machined hole, whilst the depth varies between 14 and 17.5 mm depending on the version. To complete the system, the corresponding piston and screw must be purchased separately; these are available with either an EU M8x1 or EU M8 thread, depending on the variant. An optional cover plate can also be fitted to enhance the overall finish. Once fitted, System 14 ensures that the joint is concealed inside the cabinet, offering a practical and discreet solution for assembling panels. Made from Zamak, it provides a durable and functional solution for the manufacture and assembly of furniture.

Product benefits

Fixing component designed to secure bolts in System Ø14 hitch systems, providing a firm and concealed connection.

Manufacturers: Manufactured from zamak, available in natural or zinc plated finish to suit different applications.

Distributors/Wholesalers: Available in packs of 1000 units, ensuring distribution in large volumes.

Carpenters: Installation by means of a Ø14 mm hole, with a height of 12 mm from the base to the upper point.

E-commerce & Retail: Product with great acceptance in online shops specialised in assembly and structural joining systems.

Documentation

Conical screws for System coupling Ø14 Conical screws for System coupling Ø14 product photo
Board thicknessFXPackagingFinishingSKU
14 - 16 - 18EU M8x18,51000 UnitZinc plated8146105
18EU M88,51000 UnitZinc plated8146205
20EU M8x1101000 UnitZinc plated8111805
22EU M8101000 UnitZinc plated8111905
Bolt Bolt product photo
ABFZPackagingFinishingSKU
2027EU M691000 UnitZinc plated8012905
3036EU M691000 UnitZinc plated8012705
Double bolts for System coupling Ø14 Double bolts for System coupling Ø14 product photo
PackagingFinishingSKU
500 UnitZinc plated8410805
90° double bolts for System coupling Ø14 90° double bolts for System coupling Ø14 product photo
PackagingFinishingSKU
250 UnitZinc plated8011705

What are the advantages of manufacturing in Zamak with a zinc-plated finish compared to other materials?

Zamak provides mechanical strength similar to steel, while the zinc-plated finish offers excellent protection against corrosion and rust, making it an ideal solution for demanding and long-lasting applications.

What kind of machining does the board require to install the plunger correctly?

For correct installation, a 14 mm diameter hole must be drilled to a depth appropriate to the model, taking into account that the top of the plunger is 7 mm from the surface and its total height is 12 mm.

For which board thicknesses is the plunger available and what are the variations?

The plunger is available in versions for 16, 18 and 20 mm boards, adapting to different mounting requirements. Variations affect the installation depth and housing dimensions, while maintaining compatibility with the System Ø14 system.

What is the delivery format of the plunger and how does it optimise the logistical process?

This component is presented in packs of 1000 units, which favours the supply in mass production processes, minimising replenishment times and facilitating stock management in industrial or wholesale distribution environments.

What is the specific function of the plunger in the System Ø14 coupling system?

The plunger is designed to lock the System Ø14 system bolt securely, allowing concealed assembly between panels. Its mechanism ensures a solid and precise fixing, ideal for solutions where an invisible but robust joint is required.
