Vertex with 3D regulation External drawer, height 178mm, 40kg, depth 350mm, Steel, Silver painted

3185625 / 8432393322452
DepthPackagingFinishingSKU
3501 KIT
White painted
3185612
4001 KIT
White painted
3186612
4501 KIT
White painted
3185712
5001 KIT
White painted
3185812
5501 KIT
White painted
3187112
3501 KIT
Silver painted
3185625
4001 KIT
Silver painted
3186625
4501 KIT
Silver painted
3185725
5001 KIT
Silver painted
3185825
3501 KIT
Anthracite grey
3185635
4001 KIT
Anthracite grey
3186635
4501 KIT
Anthracite grey
3185735
5001 KIT
Anthracite grey
3185835
5501 KIT
Anthracite grey
3187135

Product features

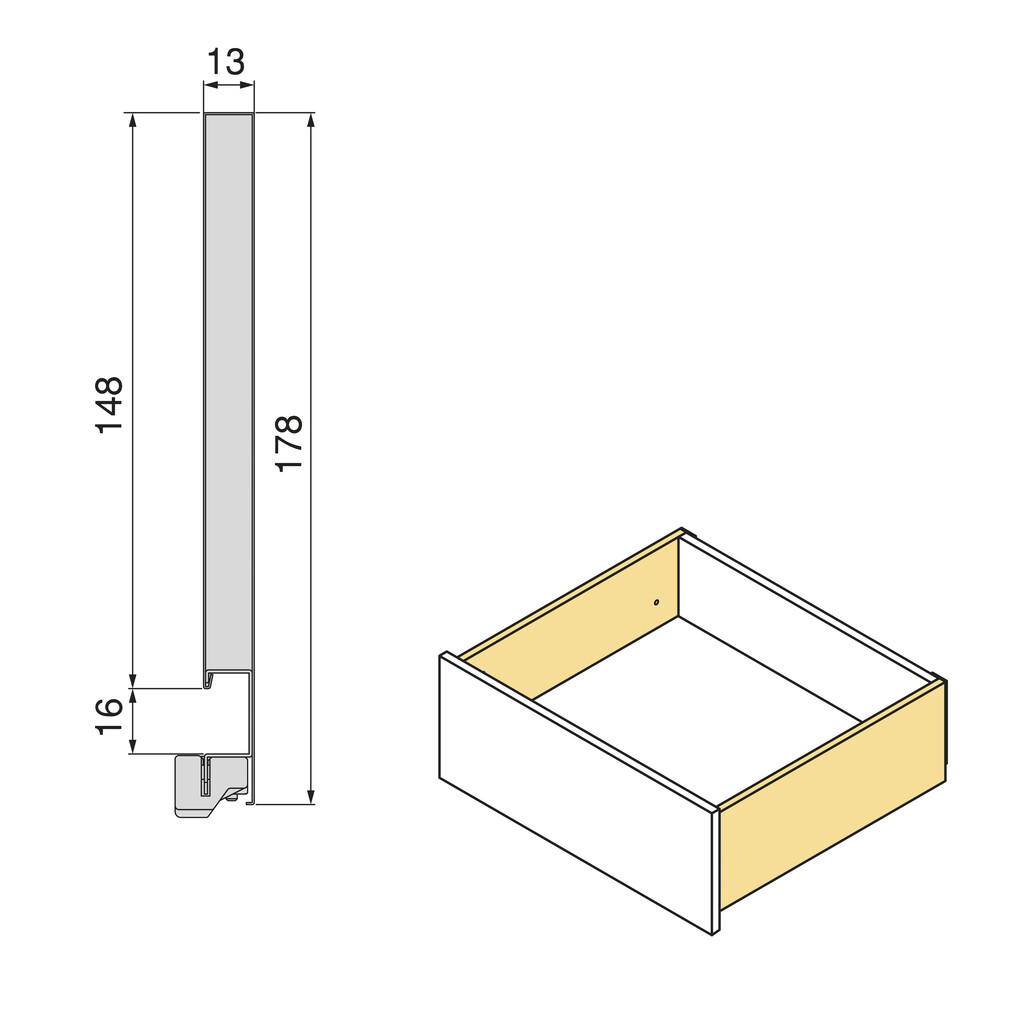

  • Kit of fittings needed to assemble an exterior drawer with a height of 178 mm and depth of 350 mm, apart from the front, back and bottom.
  • Sized for a board thickness of 16 mm for the bottom and back of the drawer.
  • Synchronized total extraction runners, with soft closing and load capacity of 40 kg.

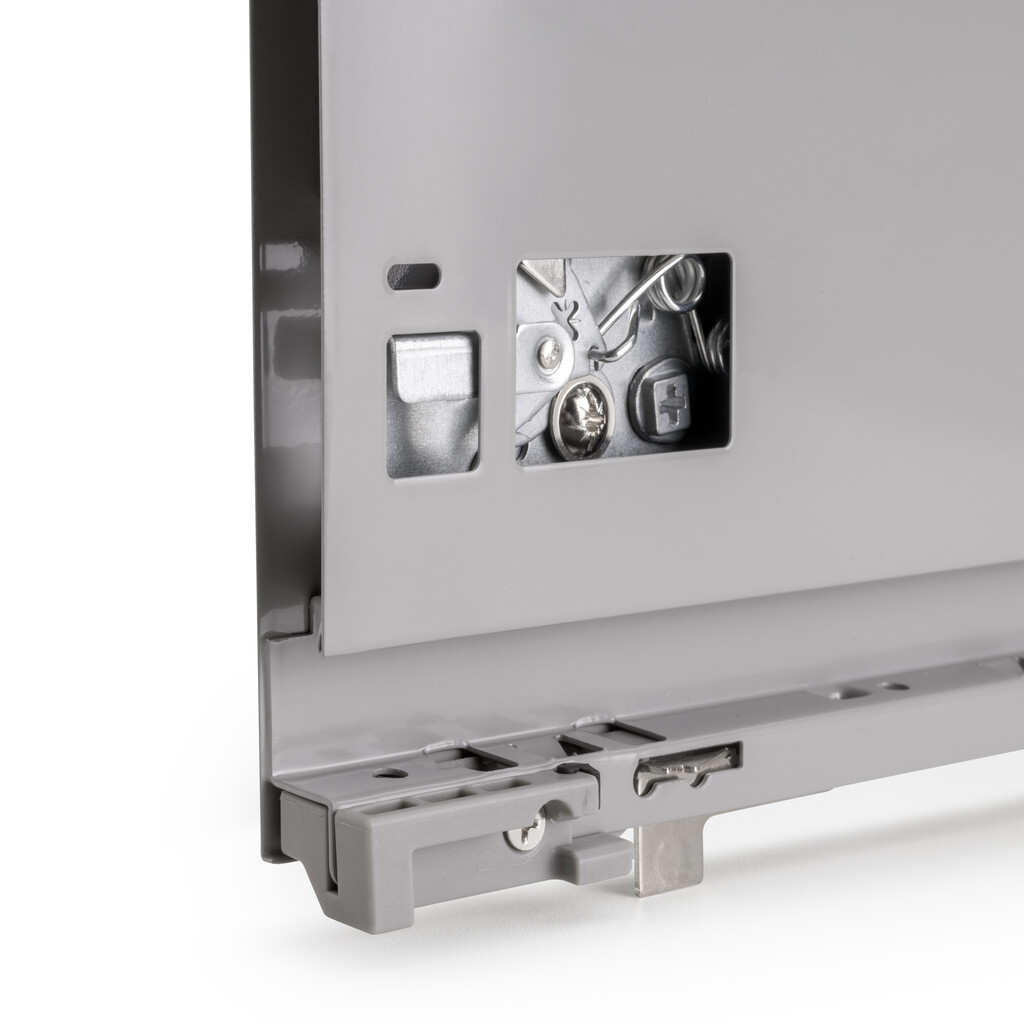

  • It has a 3D front adjustment: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm.
  • Made of silver painted grey.

Components

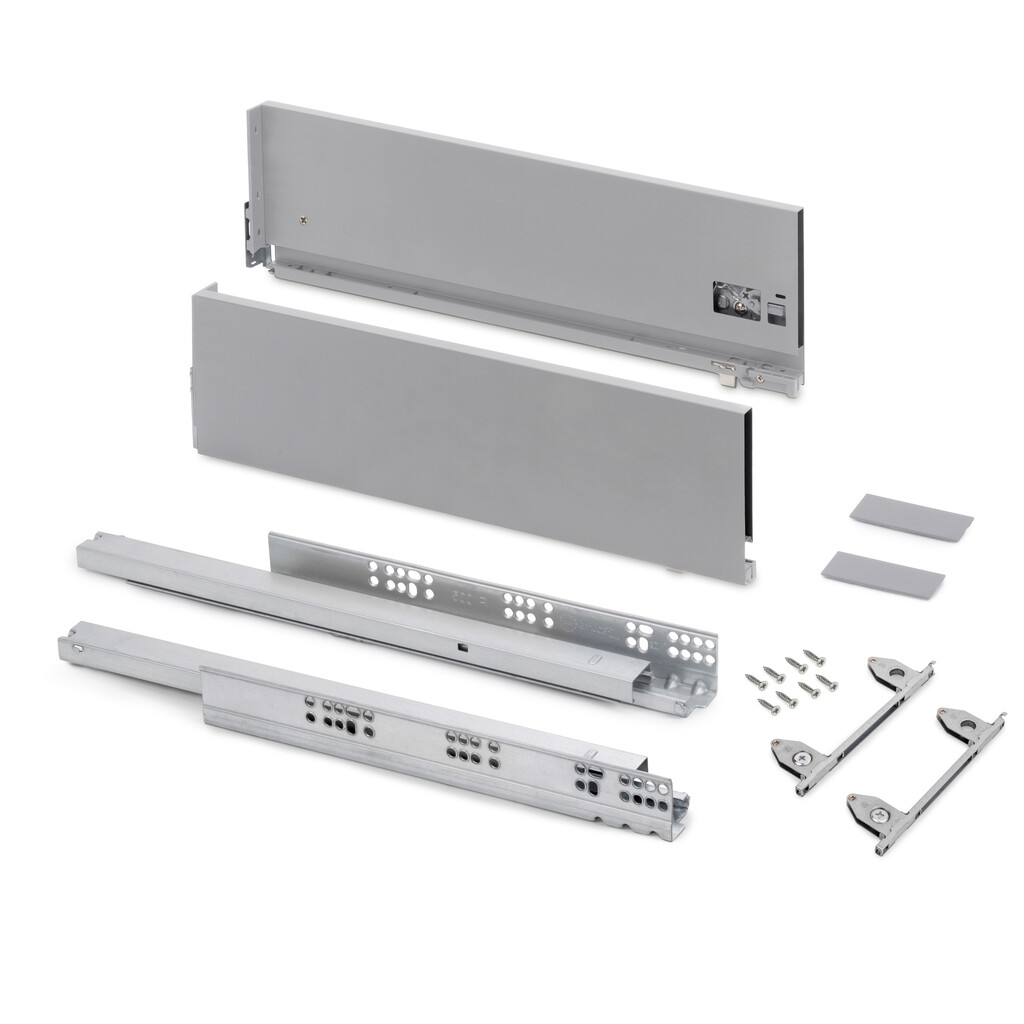

1 pair of runners, 1 set of sides, 1 set of latches for drawer front, screws

Vertex Kit for kitchen and bathroom drawer with all the necessary elements for its assembly. It is the optimal solution for your kitchen, bathroom or wardrobe furniture with an elegant design. Each kit is made up of all the elements necessary for mounting an external drawer of 178mm height, sized for a board thickness of 16mm for the bottom and back of the drawer. Includes: two sides, one set of soft-close runners, one set of covers and drawer front hooks.

The metal sides are made of steel with anthracite painted finish and allow the drawer front to be adjusted a 3D front: vertical by means of an eccentric of ±2 mm, horizontal ±1 mm, inclination -1,5/+4 mm. The guides are total extraction with soft closing and allow a maximum load of 40 Kg for the drawer.

You will only need the boards cut to the correct dimensions for the bottom, the back and the front of the drawer.

Product benefits

The Vertex drawer kit provides all the necessary components to assemble drawers with an elegant and functional design. This kit includes metal side ribs with an anthracite grey finish, soft-close runners, trim covers and drawer front fixings. It offers 3D adjustment allowing vertical adjustments of ±2 mm, horizontal adjustments of ±1 mm and tilts of -1.5/+4 mm. The full-extension slides withstand a maximum load of 40 kg, ensuring strength and functionality.

For manufacturers, this kit facilitates the creation of sophisticated and efficient storage systems, adapted to mass production needs.

For manufacturers, this kit facilitates the creation of sophisticated and efficient storage systems, adapted to mass production needs.

Wholesalers and distributors will be able to include this product in their catalogues as an integral solution that combines design and functionality, ensuring high turnover.

Carpenters and small workshops will appreciate its simple installation, which allows them to achieve high quality results in customised projects.

E-commerce and retailers will be able to position this kit as a modern and complete solution, ideal for customers looking to optimise their spaces with quality technical furniture.

Documentation

Frequently asked questions


The following video shows how to assemble such a box in a simple way:

The 178 mm Vertex drawer offers greater storage capacity, allowing larger items to be stored without compromising accessibility or the stability of the unit.

The 3D adjustment allows precise adjustment of the drawer front in three directions: ±2 mm vertically by means of an eccentric, ±1 mm horizontally and an inclination of +1.5/-4 mm, facilitating perfect alignment.

It is available in depths of 350 mm, 400 mm, 450 mm, 500 mm and 550 mm, with finishes in white painted, aluminium painted and anthracite grey.

This drawer supports up to 40 kg load and features synchronised full-extension slides with soft closing, guaranteeing smooth and silent sliding.

The cabinet must have a board thickness of 16 mm at the bottom and back of the drawer to ensure stable installation and precise adjustment of the adjustment system.
