The Vantage-Q drawer kit supports a load capacity of up to 40 kg. The slides are designed with a push system for smooth and silent opening, ensuring a smooth glide.

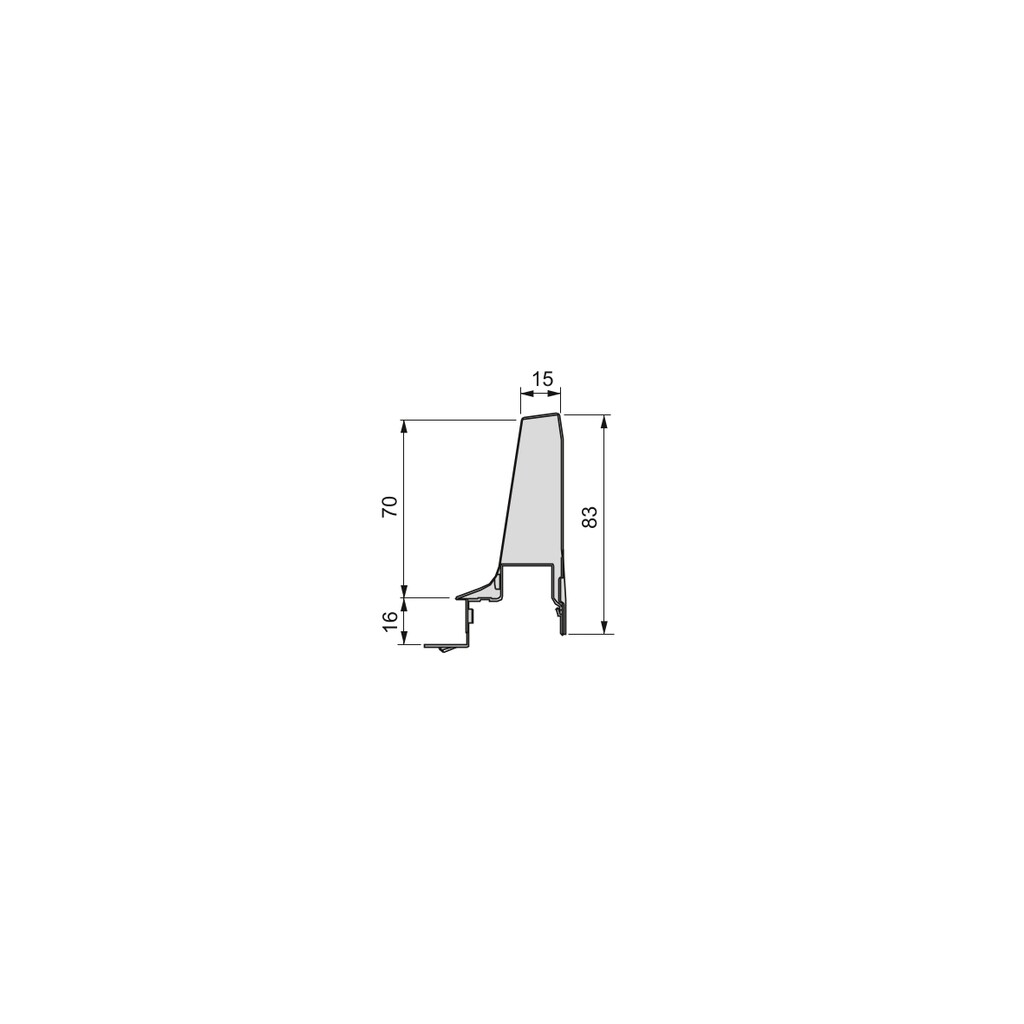

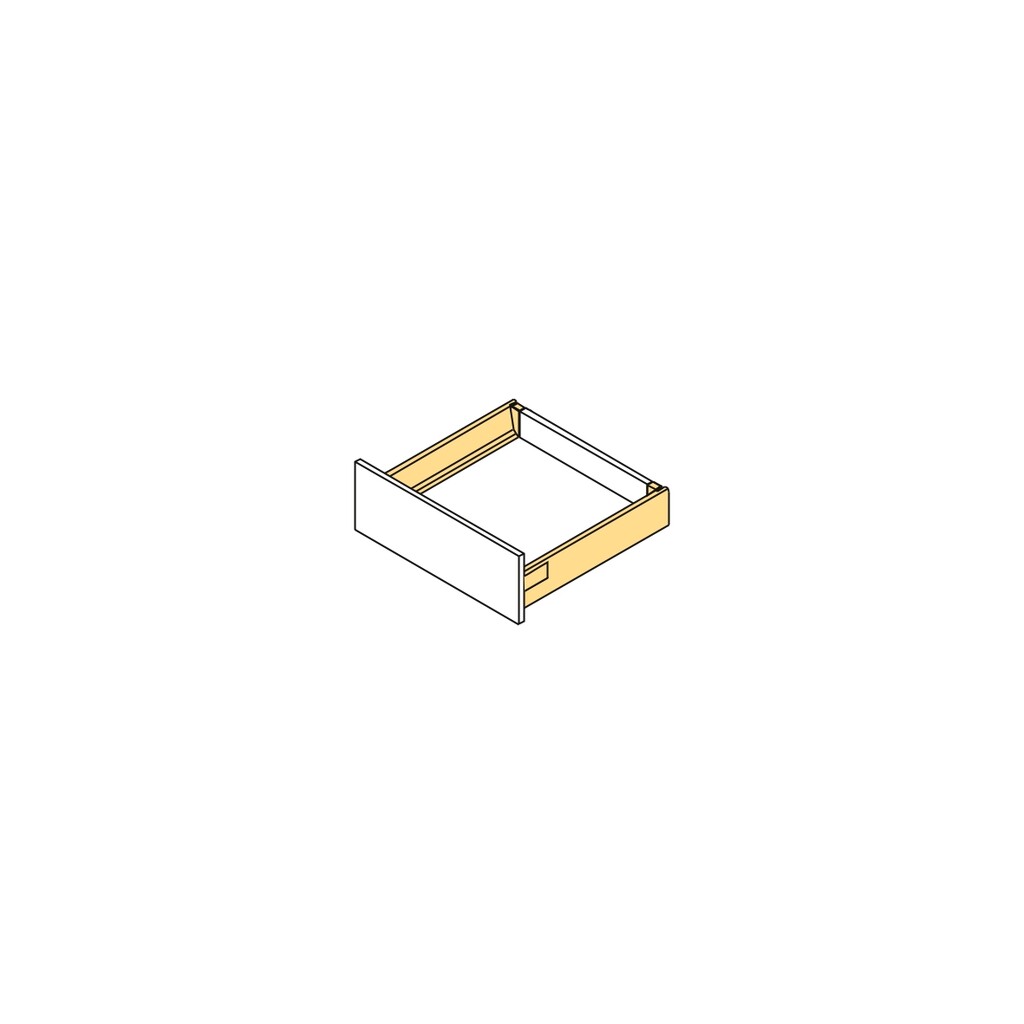

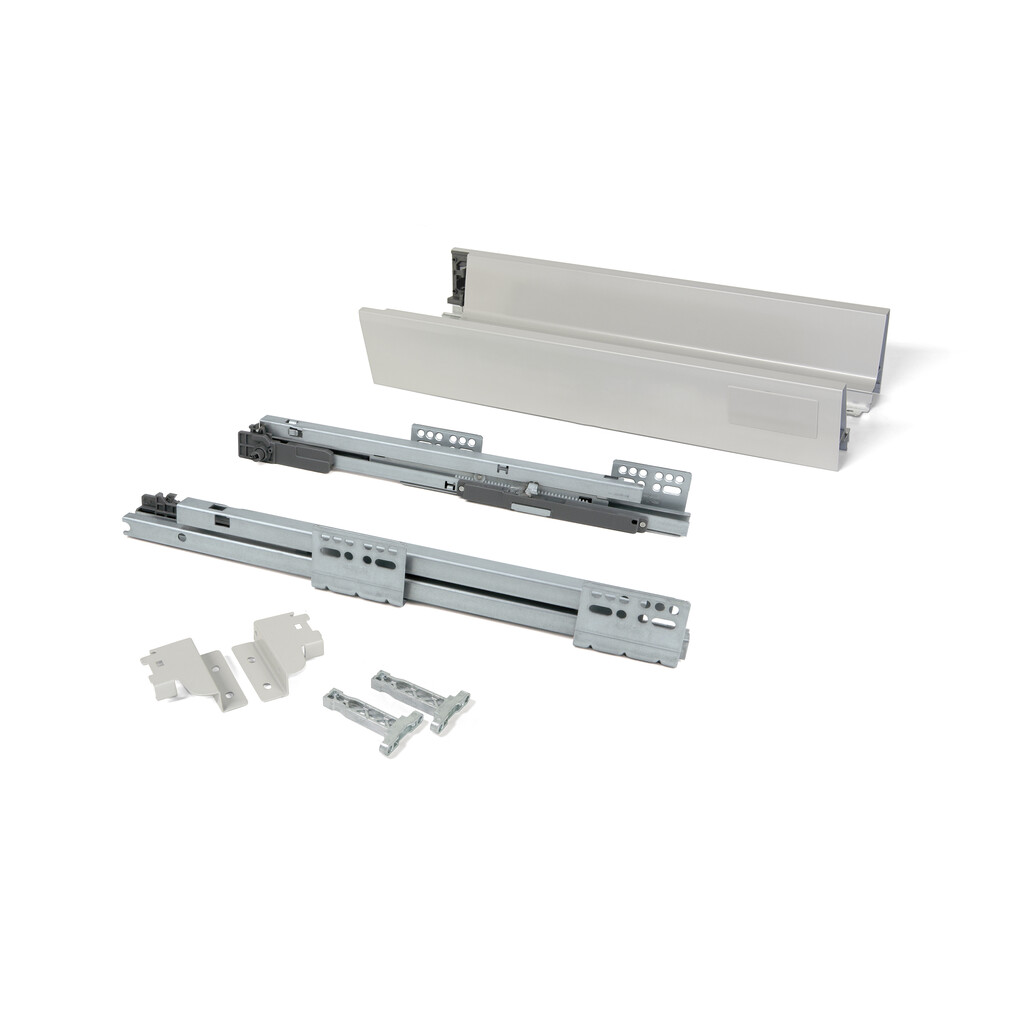

The product code includes all the elements required for the assembly of an 83 mm high external drawer: runners, ribs, rear hooking set and a front hooking set for the external drawer. For complete installation, no additional components are required.
The minimum unit depth required to install a Vantage-Q exterior drawer with push is calculated with the formula: Minimum depth = Depth + 38 mm. In this case the minimum unit depth needed will be 500 + 38 = 538 mm.
The minimum unit depth required to install a Vantage-Q interior drawer with push is calculated with the formula: Min. depth = Depth + 44 mm. In this case the minimum unit depth needed will be 500 + 44 = 544 mm.
The drawer allows a vertical adjustment of ±2 mm and a horizontal adjustment of ±1.5 mm in the front fixing, facilitating precise adjustments for a perfect installation.
The drawer ribs are equipped with staples designed to be fixed to the bottom of the drawer by machine, ensuring precision and robustness in assembly. They are compatible with any module width.
The materials used in the kit include epoxy painted steel, finished in white (RAL 9003) and grey (RAL 9006). These materials offer high resistance to wear and an excellent aesthetic finish.
