2. Products
  3. Drawers
  4. Vantage Plus Drawer
  5. Drawer Vantage Plus kit

Vantage Plus External drawer, height 131mm, depth 500mm, Steel, Silver painted

SKU 3140125 / EAN 8432393292281
HeightDepthPackagingFinishingSKU
1315001 KIT
Silver painted
3140125

Product features

  • Kit of fittings needed to assemble an exterior drawer with a height of 131 mm and depth of 500 mm, apart from the front, back and bottom.
  • Includes the total extraction runners, set of sides, set of back hooks and set of front hooks for the outer drawer.
  • The runners are total extraction with soft closing and a maximum load of 40 kg.
  • Made from steel painted metallic grey colour (RAL7045).
SKU 3140125
EAN 8432393292281
Model Vantage Plus
Format Kit
Extension Total
Opening Normal
Latch type Soft close
Adjustment 2D regulation
Load 40 kg
Depth 500
Board thickness 16 mm

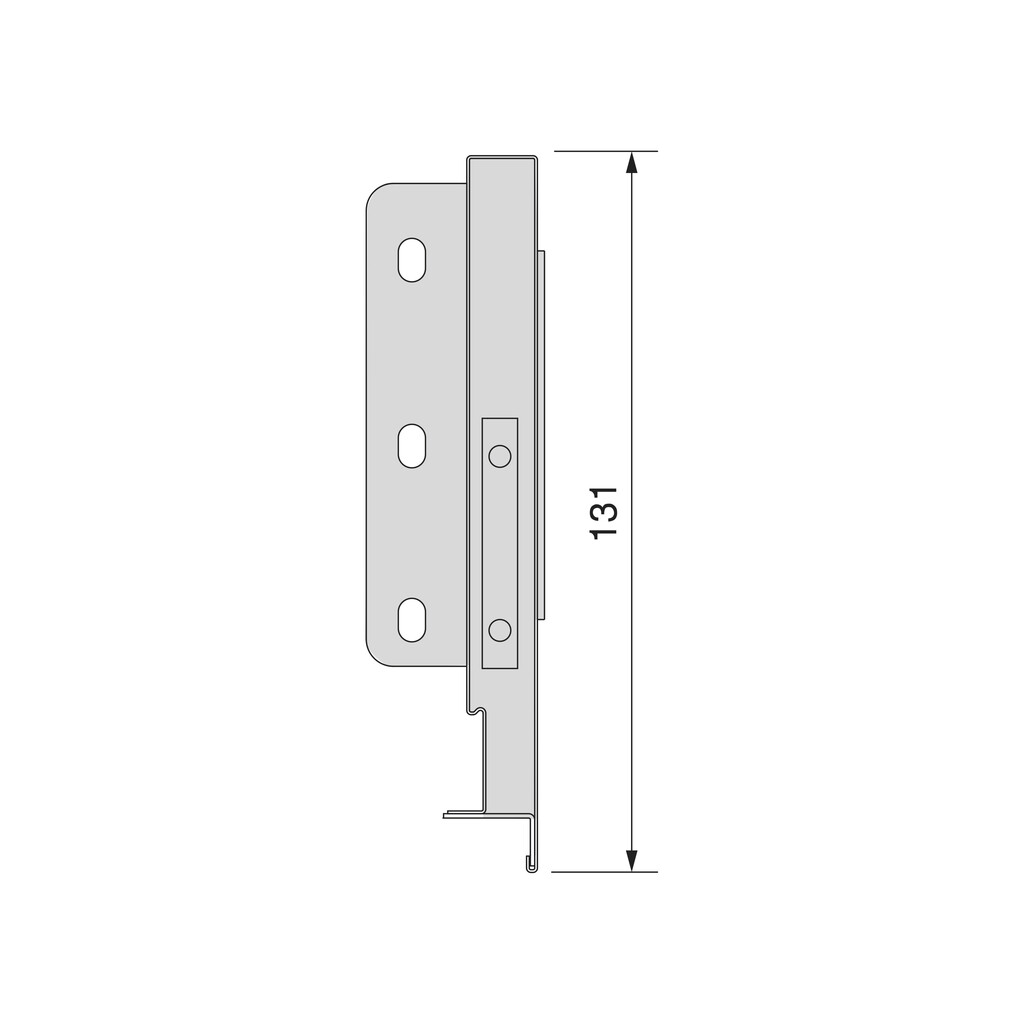

Height 131
Finishing Silver painted

Components

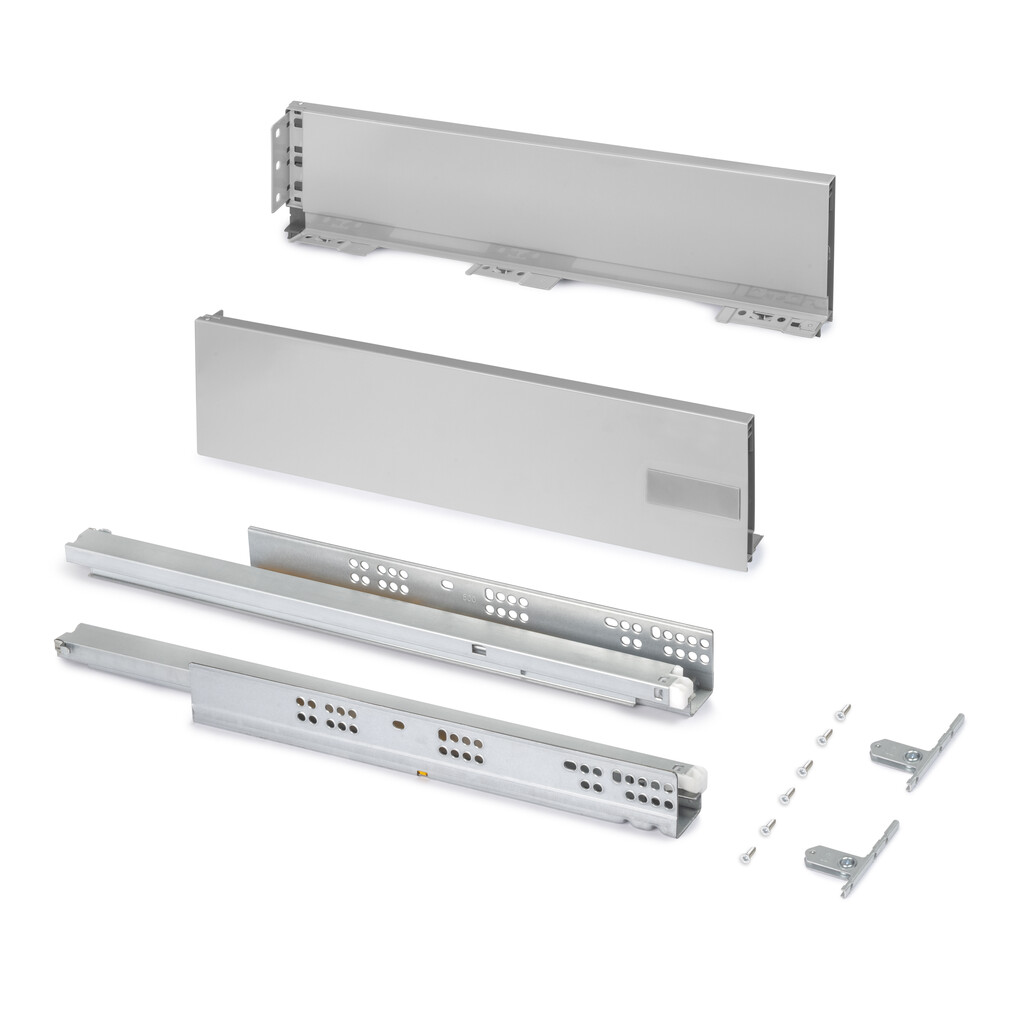

1 pair of runners, 1 set of sides, 1 set of back hooks, 1 set of frontal hooks, screws

The Vantage Plus drawer for kitchens is available in a kit format with all of the fittings needed for its assembly. It also stands out for its great load capacity that can support up to 40 kg per drawer. It includes total extraction runners with soft closing and sides available painted or metallic grey finish (RAL7045).
You will only need the boards cut to the correct dimensions for the bottom, the back and the front of the drawer.

Documentation
