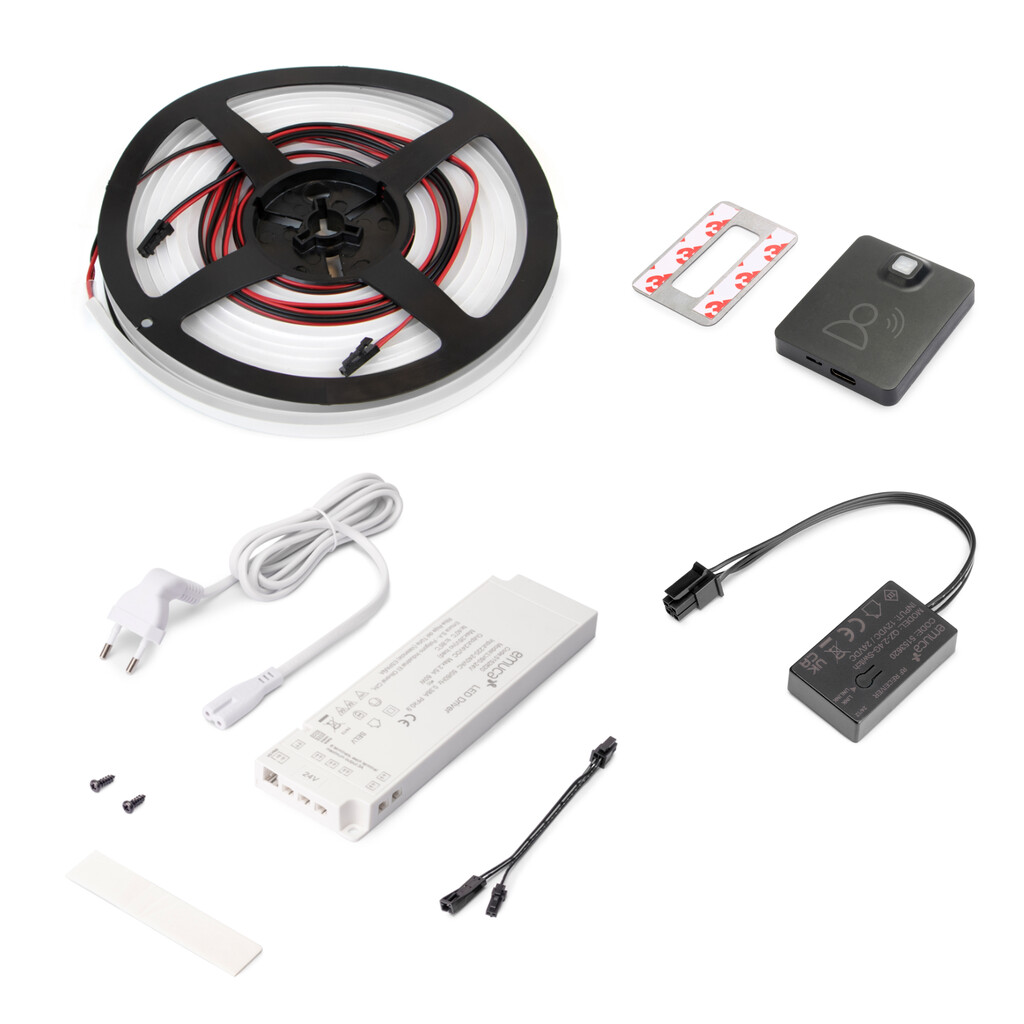

1 LED strip, 1 transmitter, 1 receiver, 1 converter

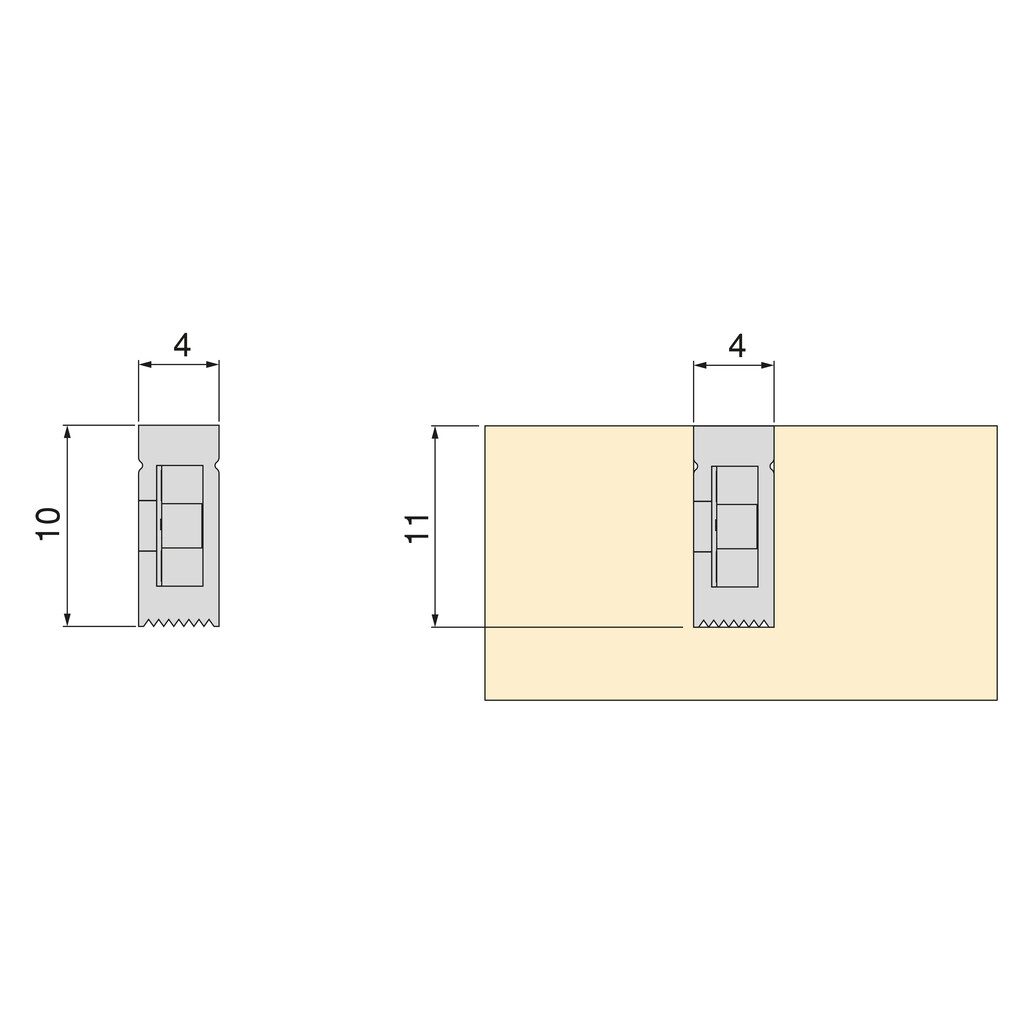

The Neonlynx V 4x10 LED lighting kit for wardrobes is the ideal solution for creating curved or straight lines in 4 mm wide by 11 mm deep grooves, achieving maximum integration into the furniture. This kit includes everything required for the quick installation of an LED strip, a Smart 24V DC converter, an RF Smart receiver and transmitter with motion sensor.

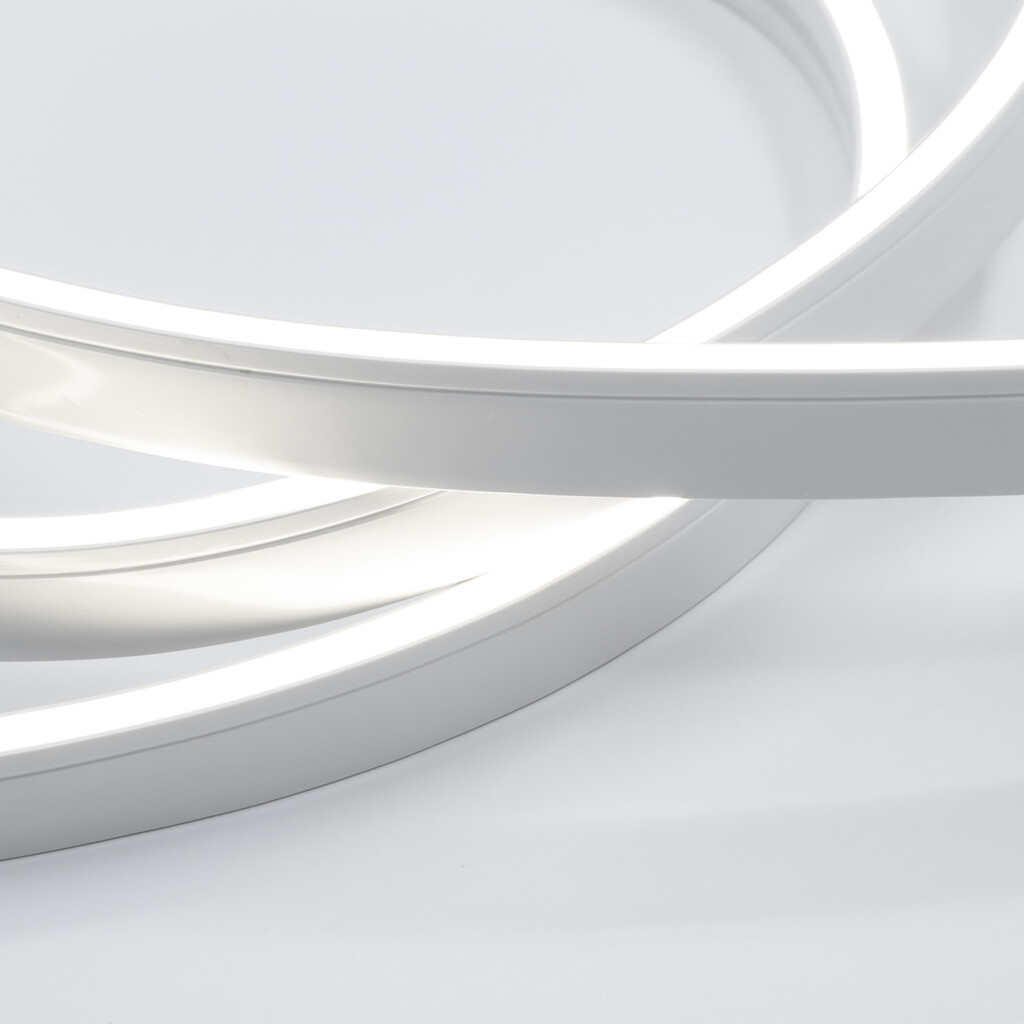

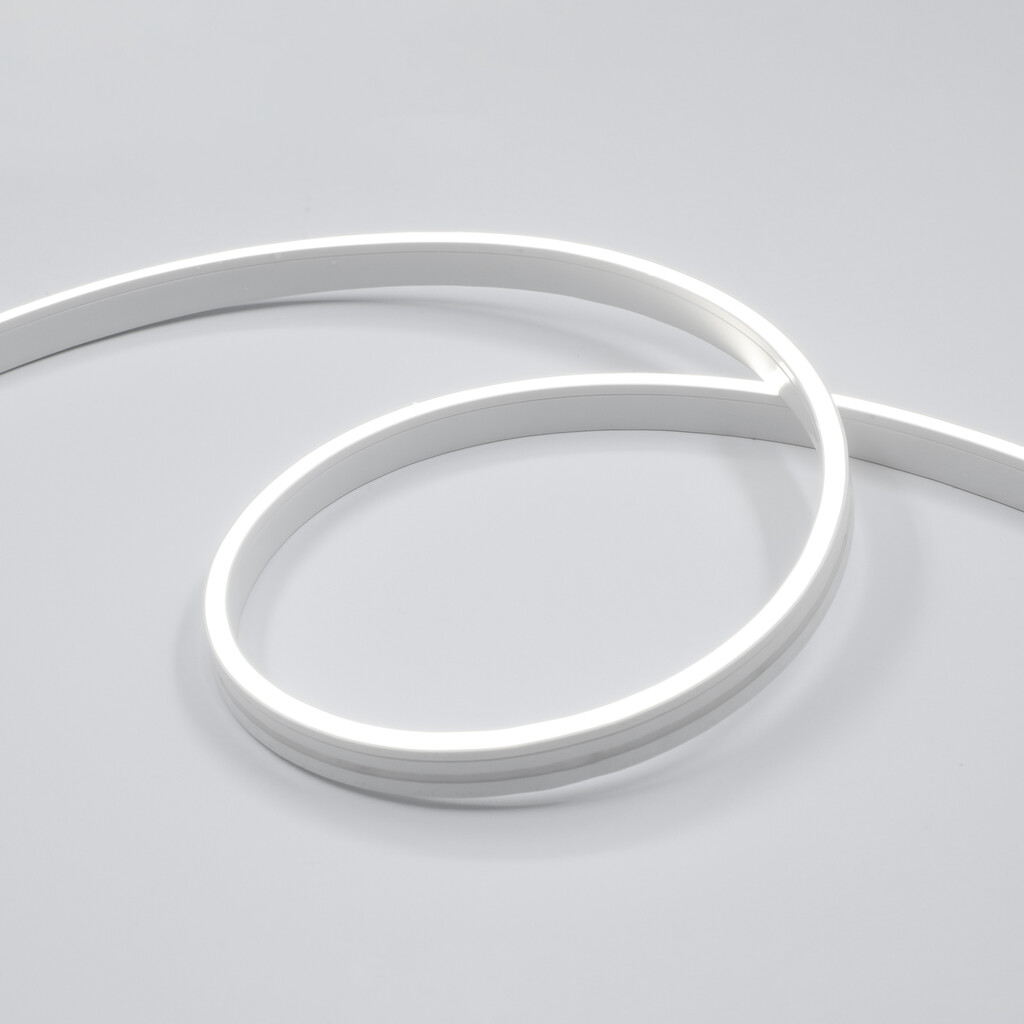

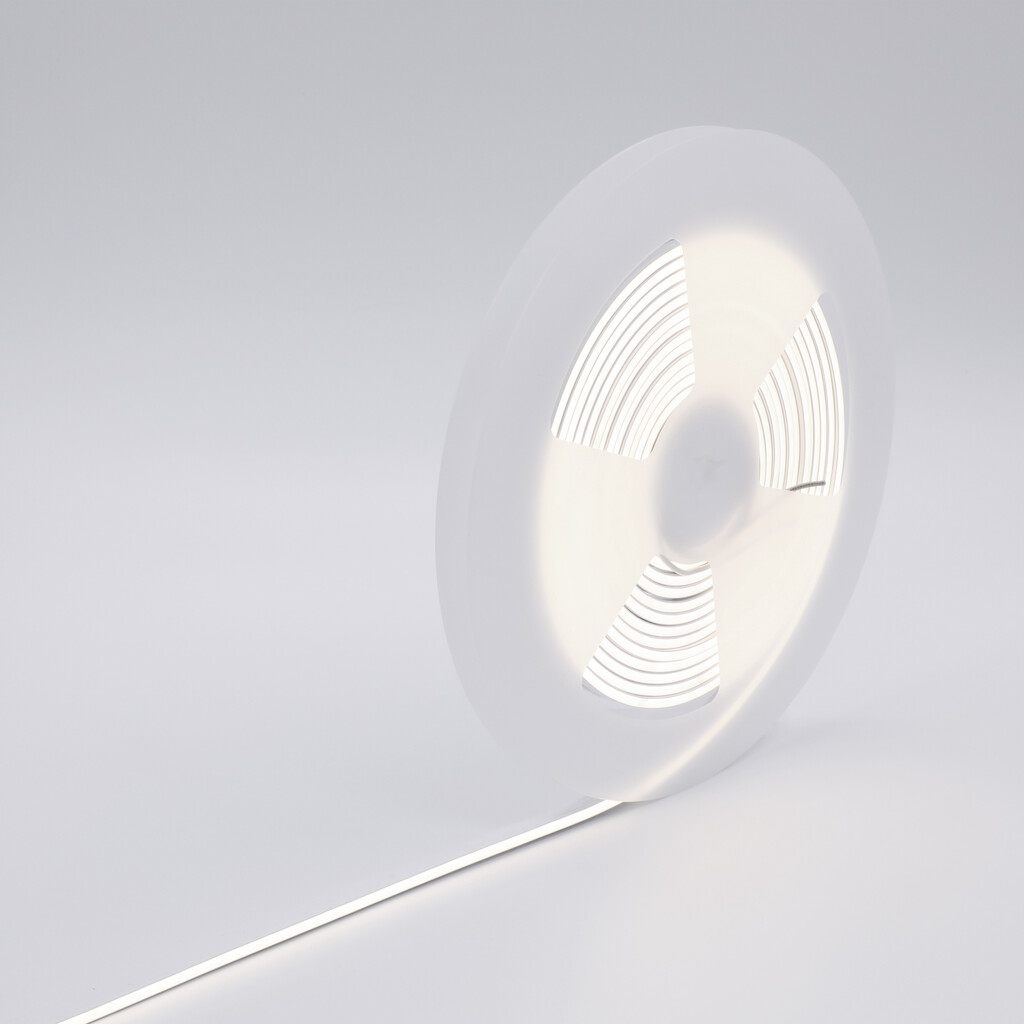

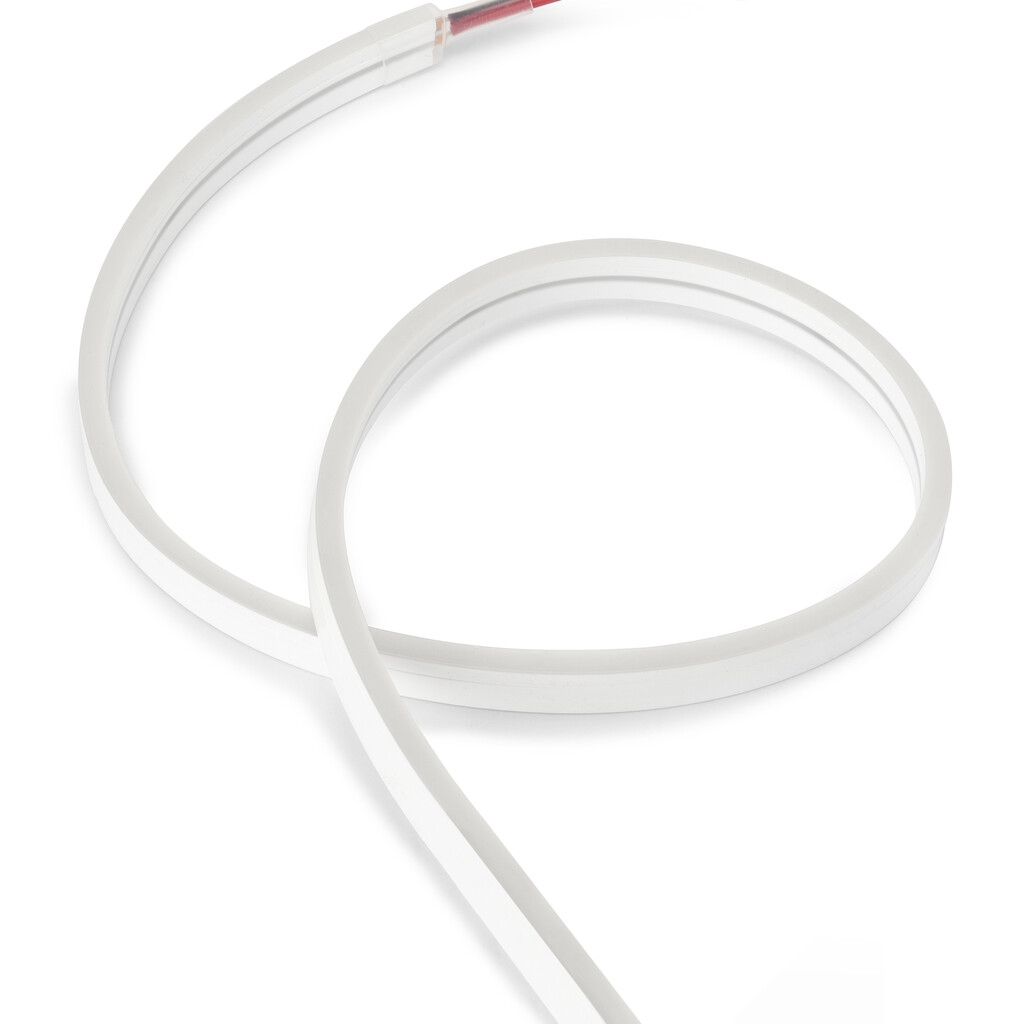

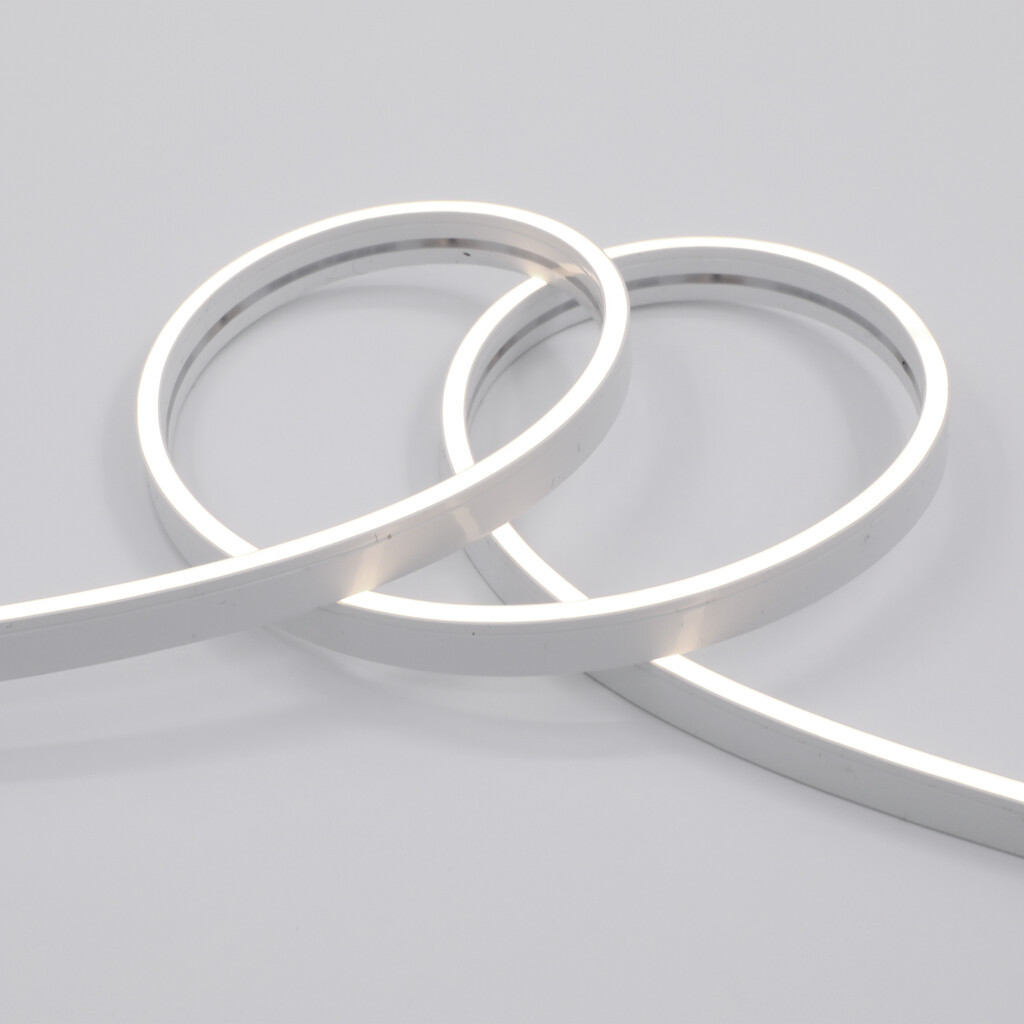

The LED strip is made from high-quality silicone, moisture-resistant and capable of maintaining a stable colour temperature even in demanding installations. It is supplied as a continuous 5 m roll, cuttable every 63 mm and dimmable, offering great versatility for bespoke projects.

Thanks to the RF Smart motion sensor, with a detection range of 2 m, the lighting switches on automatically when movement is detected and switches off after 45 seconds if no further movement is detected. This significantly enhances everyday usability, allowing easy access to wardrobe contents without the need for switches.

The Smart converter with 60 W power output and constant 24V DC voltage centralises control of the entire system and allows both sensors and luminaires to be connected in a single installation. Its Plug & Play design, with 6 Miniled outputs, makes it extremely versatile. It includes a 2 m cable with a 90° angled Type C plug, and a polycarbonate housing that provides protection against overheating and short circuits.

The result is a versatile, modern and reliable lighting solution that combines design, functionality and technology in a single ready-to-install kit.

For furniture manufacturers focused on serial production, this kit fits perfectly into 4 mm wide by 11 mm deep grooves, simplifying machining processes and helping to reduce production costs. The high-quality silicone LED strip, supplied in a continuous 5 m roll, cuttable every 63 mm and dimmable, allows solutions to be standardised in large volumes while maintaining a stable colour temperature, even in demanding installations.

Designed for distributors and wholesalers seeking high-turnover products with added value, the kit includes all necessary components: LED strip, 60W Smart 24V DC converter, receiver and RF Smart motion sensor, reducing commercial complexity and after-sales issues. The Plug & Play system with 6 Miniled outputs simplifies technical specification and reinforces positioning as a premium distributor.

For carpenters, installers and small professionals who require speed and flexibility, the RF Smart motion sensor with detection up to 2 m activates the lighting automatically and switches it off after 45 seconds without presence, eliminating switches and saving installation time. The 2 m cable with 90° angled Type C plug and dimming capability allow easy adaptation to each project without stock accumulation.

For e-commerce platforms and large retailers focused on online sales, this kit becomes a differentiating solution thanks to its integrated design, compatibility with curved shapes and Smart functionalities. The converter with polycarbonate housing and protection against overheating and short circuits ensures logistical reliability, reduces incidents and supports dropshipping and omnichannel strategies.

The strip is supplied in a continuous 5-metre roll and can be cut every 33 mm, allowing precise adaptation to custom-made projects. It includes 1.5 m power cables at both ends, facilitating connection to the converter. The Plug & Play system with Miniled connectors reduces installation time and minimises errors in professional installations.

The Smart RF sensor operates by contactless proximity, with a detection range of 5 cm. It allows switching on and off with a quick gesture and dimming control (0–100%) through short or prolonged approaches. This device operates via radio frequency, with a range of up to 8 metres, and features a rechargeable lithium battery, eliminating the need for battery replacement.

The LED strip is designed for recessed installation in a groove 12 mm wide and 5 mm deep, allowing a fully flush integration into the furniture. It is suitable for both straight and curved layouts, with a minimum bending radius of 25 mm, making it easy to adapt to corners and special shapes. Fixing is achieved by means of an integrated 3M technical adhesive, recommended for clean and degreased surfaces such as melamine, MDF, wood or aluminium.

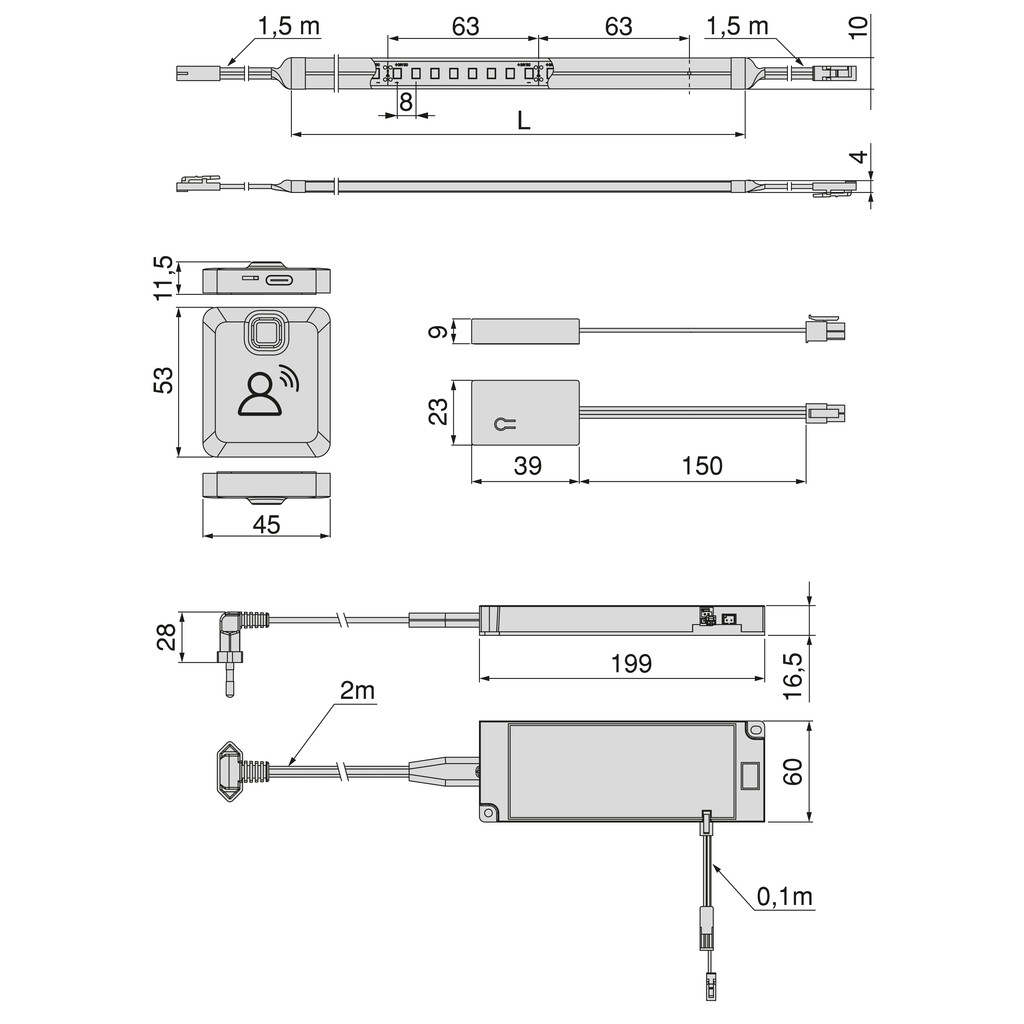

The system operates at 24V DC constant voltage. The LED strip has a power consumption of 7.6 W/m, reaching approximately 38 W over 5 m. The included Smart converter has a maximum power output of 60 W, allowing it to supply the complete strip and additional elements, provided the total permissible load is respected. It features 6 Miniled outputs, centralising the power supply of luminaires and sensors in a single installation.

The LED strip is made of high-quality silicone with IP65 protection, making it resistant to humidity and splashes, while maintaining a stable natural colour temperature of 4,000 K even under demanding conditions. The Smart converter incorporates a polycarbonate housing and protection systems against overloads, overheating and short circuits, ensuring safe and reliable operation in professional and industrial installations.
