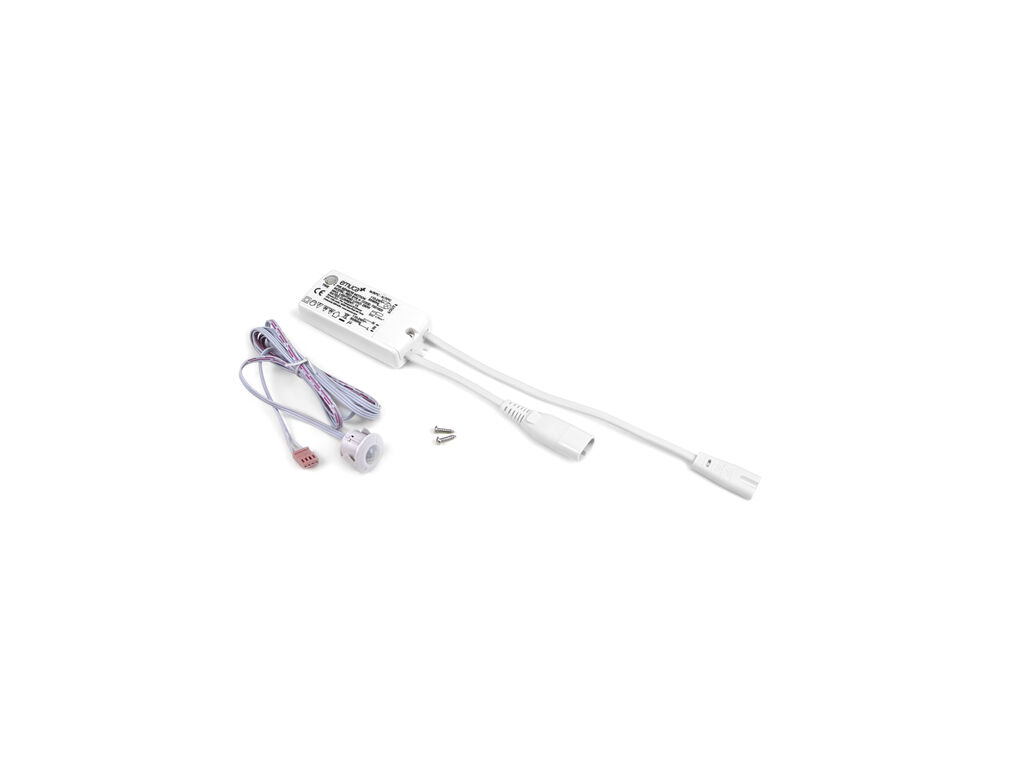

LED sensor Red Eye 4 motion (movement) 240V AC

70018 /

Product features

The Red Eye 4 sensor is a motion detection system with timer. It switches on when its detection range is interfered with, and it pays off once the programmed time has elapsed, as the timer included is adjustable between 10 seconds and 3 minutes. The detection range of the sensor is 2.5 metres.

Documentation

Frequently asked questions


The main difference is the position they are fitted in during installation.The 12V sensors (Twelfy) are placed between the light and the converter. Consequently, the converter is always working.The 240V sensors (Red eye) are placed between the converter and the electric socket.The big advantage of a 12 V sensor (Twelfy) is that is makes it possible to connect with a single converter (maximum admissible power 40W), on the other hand the 240V sensors (Red eye) need two converters.

The Red Eye sensors that functions at 240V AC are different in accordance with their functionality and your needs."I need a sensor that turns on and off the light like a switch but without physically touching the furniture". SWITCH. Red Eye 1 (switch) Code. 7001520. An ON/OFF proximity detection system that turns on or off when its detection range of 5 cm is triggered."I need a sensor that turns on lights when it detects the movement of a human body and turns off automatically after a while, providing that it does not detect the movement of a human body, ideal for walk-in wardrobes". MOTION. Red Eye 4 (movement) Code. 7001820. A movement detection system, it turns on when the detection range of 2.5 m IS triggered and the switching off can be adjusted between 10 seconds and 3 minutes."I need a sensor that turns on the light through contact with a metallic surface, ideal for bed headboards". METAL. Red Eye 5 (touch) Code. 7001920. Detection system through contact with a metal surface. Adjustable detection ranges and/or functioning according to needs.

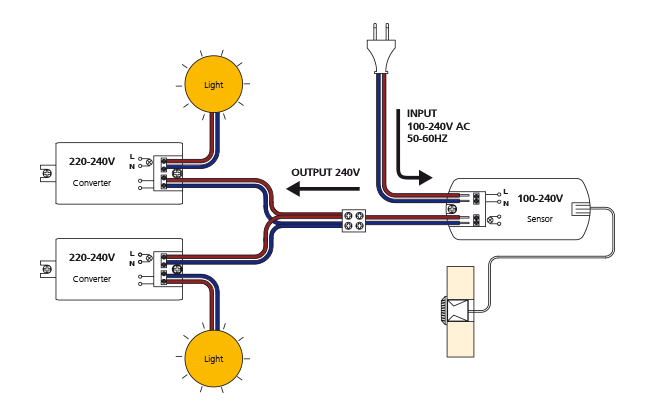

Follow this diagram:

Follow this diagram:
